Who makes MDT products, and where?

MDT technologies GmbH makes them. The company is based in Engelskirchen, near Cologne in Germany, where its products are developed and produced.

What does the MDT catalogue cover?

The catalogue has more than 600 building automation products, grouped into eight families by function and material. The families are Acturio, Elevio, Lucilio, Aurelio, Motivio, Varisio, Sensario and Coresio. Together they cover the whole building, from the controls on the wall to the system devices in the distribution board.

How do MDT devices work together?

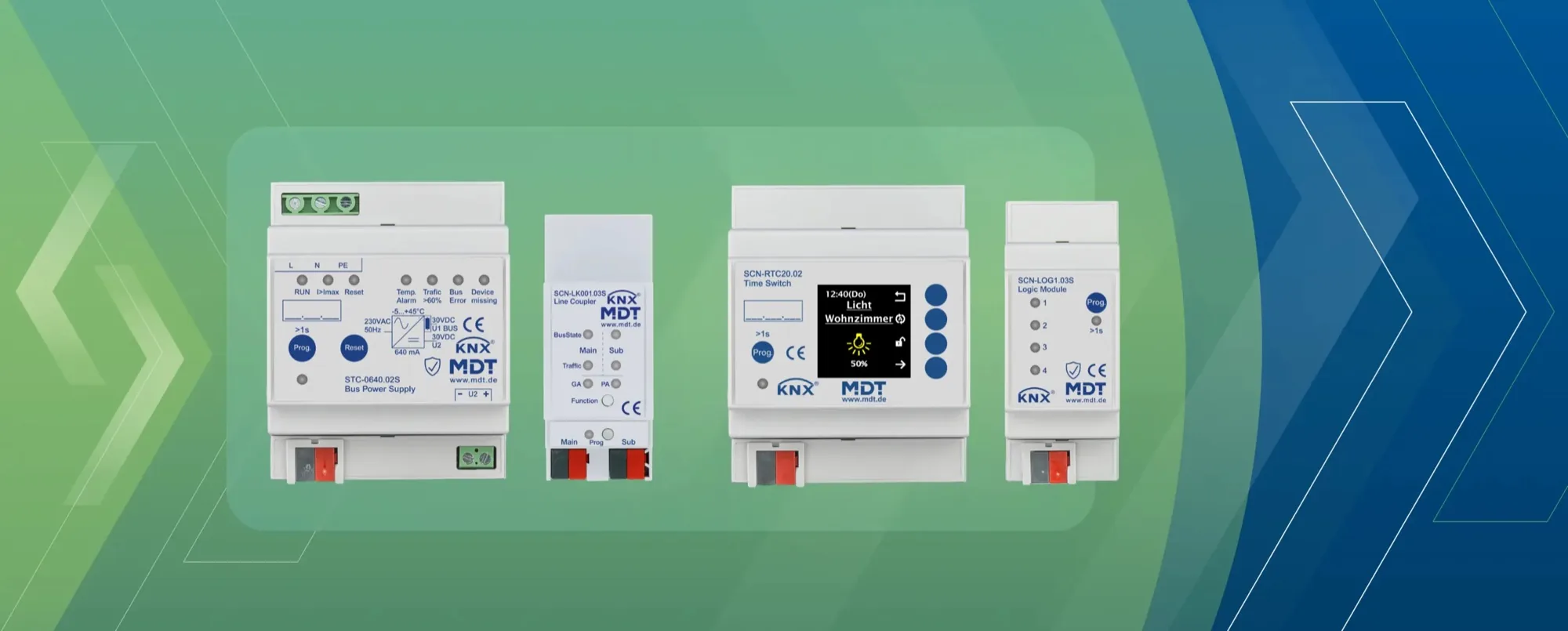

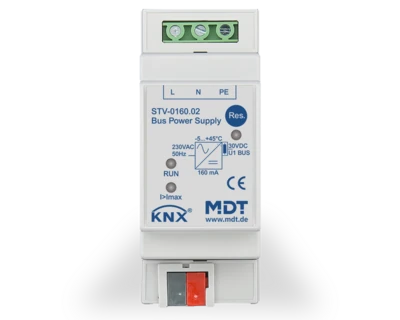

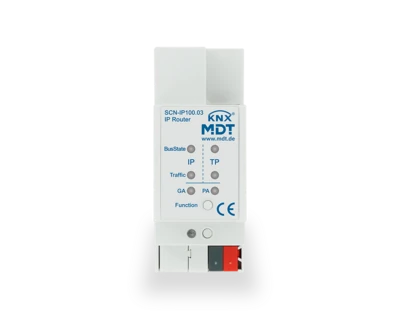

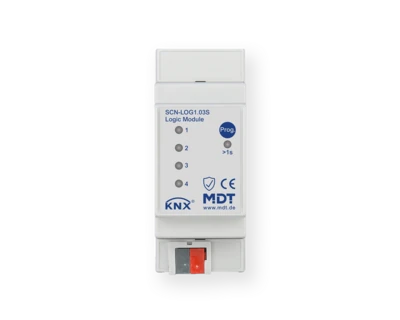

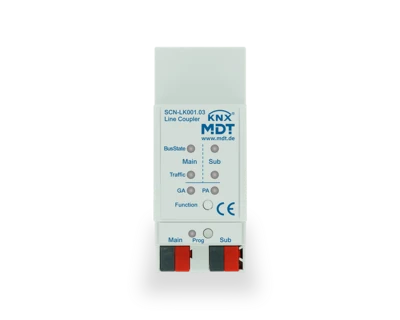

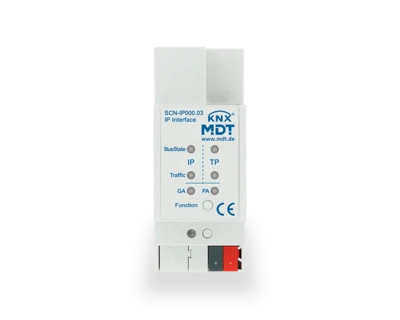

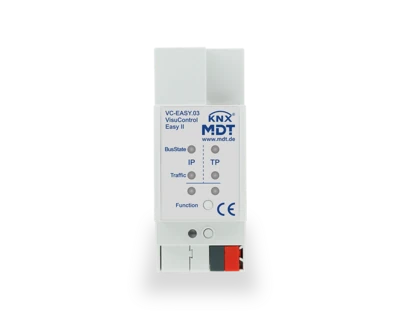

MDT devices are components of a building automation system. Sensors measure conditions for the system, and actuators handle switching, shutters, heating and dimming. The Coresio family holds the system devices an automation installation runs on, such as bus power supplies, line couplers, IP interfaces and the Logic Module. On the Lucilio display models, colours, symbols and text are set in ETS.

What is the difference between Elevio, Lucilio and Aurelio?

Elevio is the plastic range for standard switch frames of 55, 60, 63 and 86 mm. Lucilio is the family of stand-alone glass push-buttons. Aurelio covers touch displays and visualisation, including the VisuControl Plus touch panel with an 8-inch glass display.

Which standard does MDT work to?

MDT works to KNX, the open worldwide standard for home and building control. MDT has developed and produced only KNX products since 2009.

How do I enquire in India?

Morion Automation is the authorised distributor in India. Use Book a consultation, or write to info@morion.in.

Brands01

Building automation hardware · Engelskirchen, Germany

MDT Technologies

More than 600 building automation products, developed and produced in Engelskirchen near Cologne, and grouped into eight families by function and material.

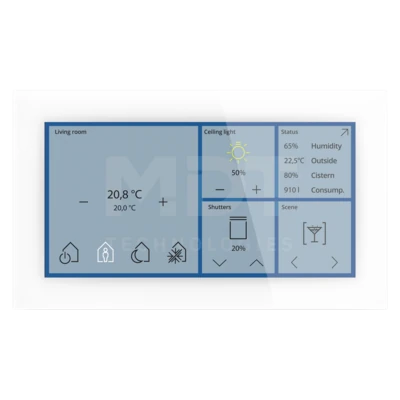

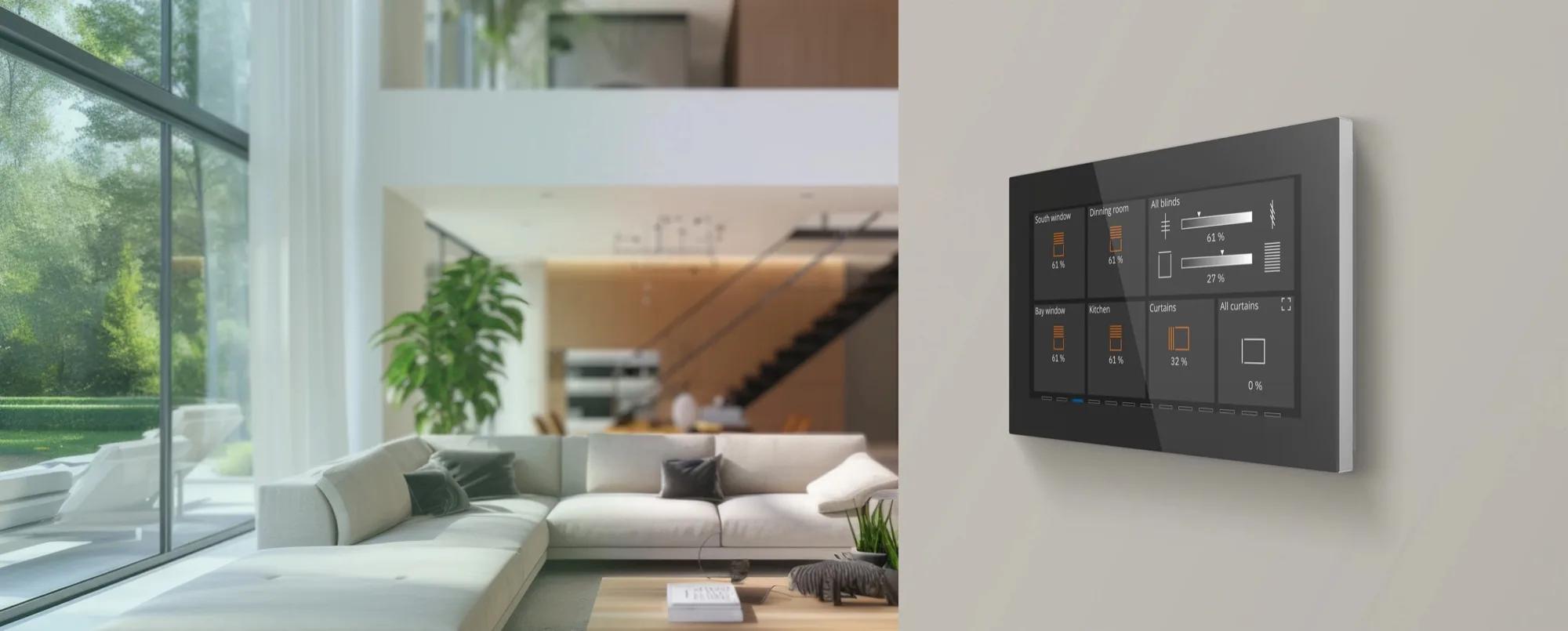

An MDT Glass Touch Smart display beside an open-plan living room

Aurelio · Glass Touch Smart, 6 inchPhotography: MDT

Brand overview

MDT has developed and produced only KNX products since 2009. Its catalogue covers the whole building, from the controls on the wall to the system devices in the distribution board.

Company: MDT technologies GmbH
Headquarters: Engelskirchen, Germany
Standard: KNX, the open standard for home and building control
Catalogue: Over 600 products
Warranty: 3 years on MDT devices
Partner in India: Morion Automation

Families

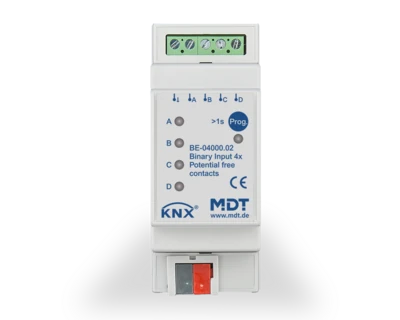

MDT / 01 of 08Actuators, inputs / outputs and energy meters

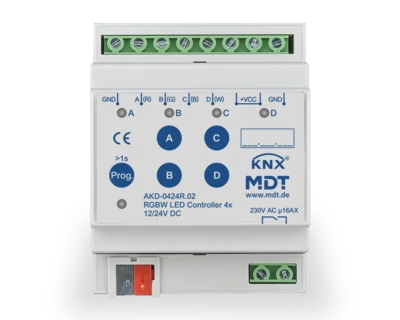

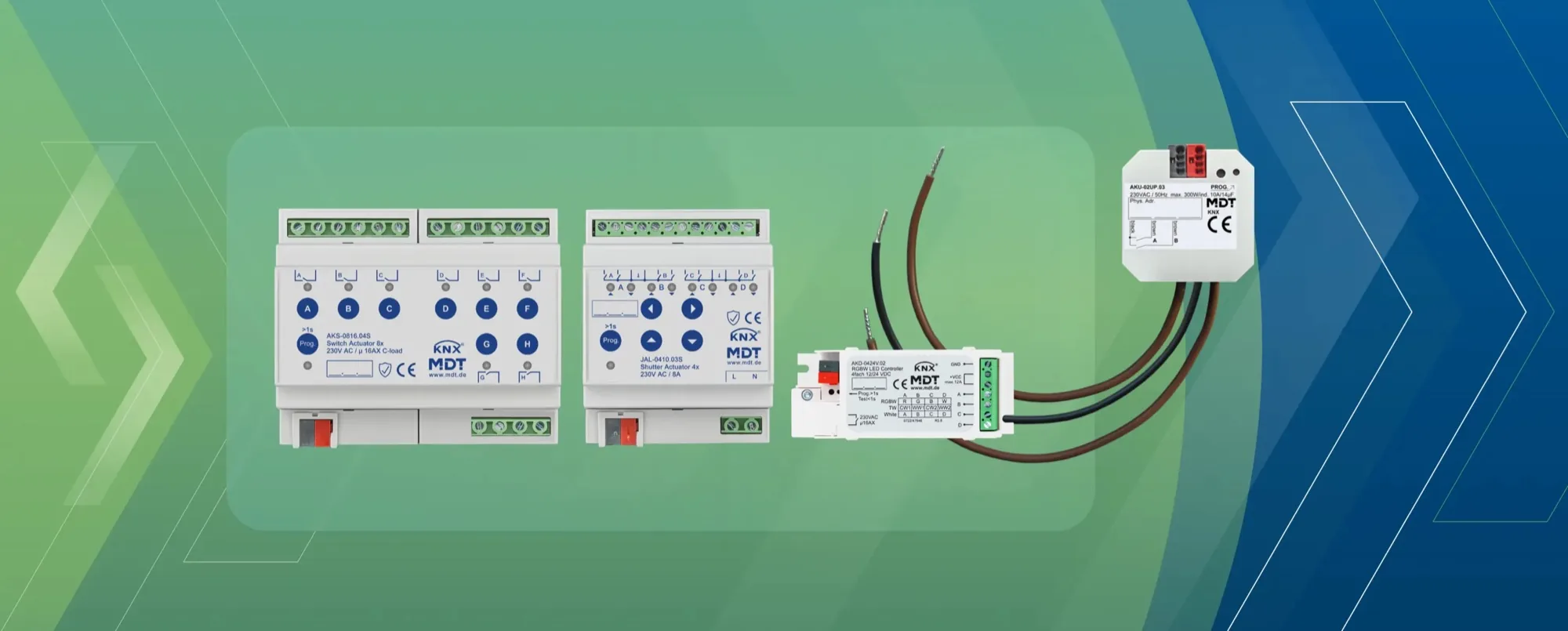

MDT switch actuator, shutter actuator, LED controller and flush-mounted actuator

Acturio

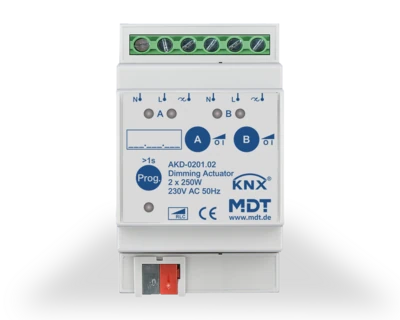

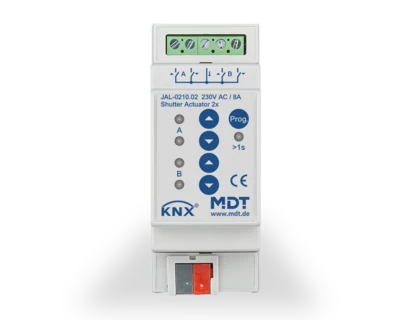

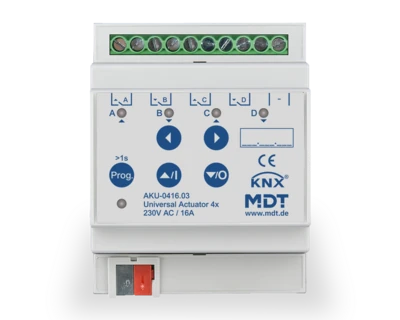

Switching, shutter, heating and dimming actuators and energy meters. The 20- and 24-channel AKS switch actuators save up to 30% of the space in the distribution board compared with comparable products. Channel actuators run from 1-fold (flush-mounted) to 24-fold (DIN rail).

Channel actuators

1-foldup to 24-fold

Range

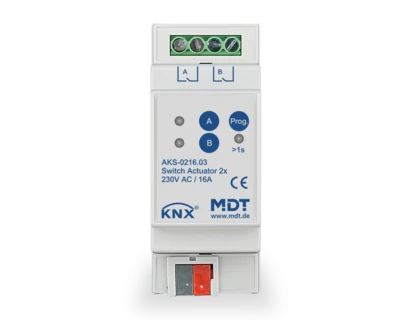

Switch Actuator AKS Standard 16 A
2-fold to 24-fold · DIN rail · 16 A

A wide range of functions for medium to large loads. Seven models.
- 2-fold2 SUAKS-0216.03
- 4-fold4 SUAKS-0416.03
- 8-fold6 SUAKS-0816.03
- 12-fold8 SUAKS-1216.03
- 16-fold8 SUAKS-1616.03
- 20-fold12 SUAKS-2016.03
- 24-fold12 SUAKS-2416.03
Range

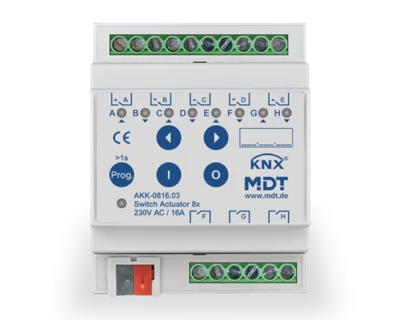

Switch Actuator AKK compact
2-fold to 24-fold · DIN rail · 16 A

For small to medium loads. Narrower than AKS at 4‑fold and 8‑fold (2 and 4 SU, against 4 and 6 SU); the same width at 2‑, 16‑ and 24‑fold. Five models, with no 12‑fold or 20‑fold size.
- 2-fold2 SUAKK-0216.03
- 4-fold2 SUAKK-0416.03
- 8-fold4 SUAKK-0816.03
- 16-fold8 SUAKK-1616.03
- 24-fold12 SUAKK-2416.03
Range

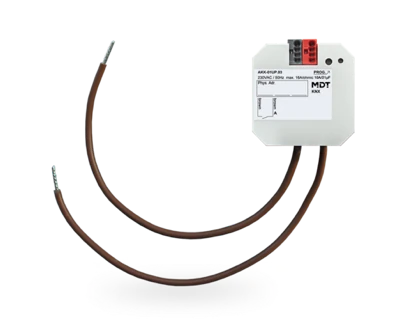

Switch Actuator AKK flush-mounted
1-fold to 2-fold · flush-mounted

For switching individual consumers from the switch box. This is where the range starts at 1-fold. Two models.
- 1-fold16 AAKK-01UP.03
- 2-fold10 AAKK-02UP.03

Elevio

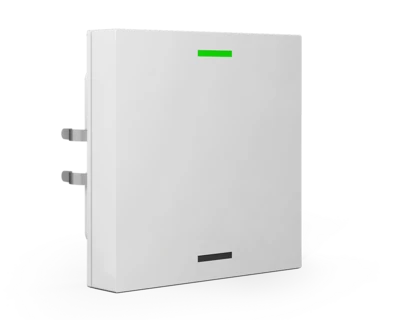

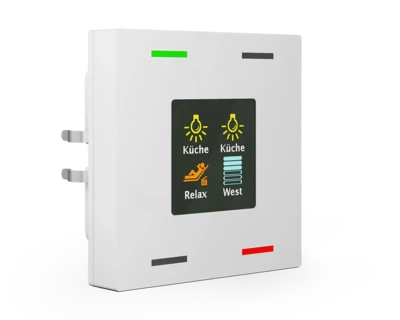

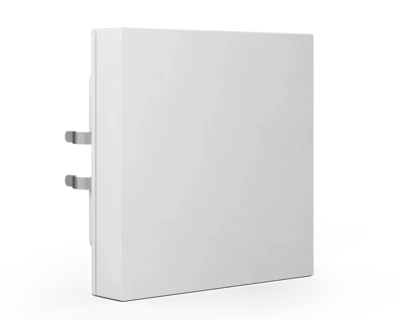

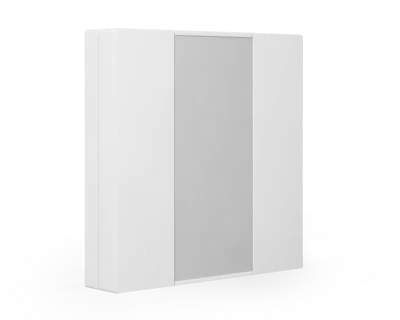

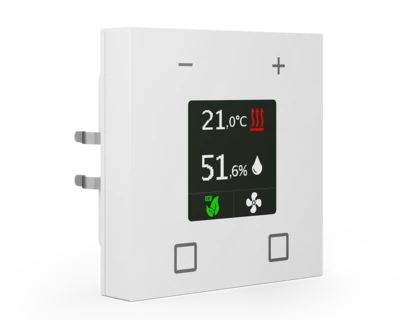

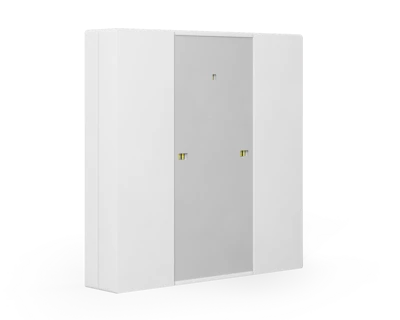

Control elements for standard switch frames of 55, 60, 63 and 86 mm: push-buttons, room temperature controllers, motion detectors and CO₂ / VOC sensors.

Lucilio

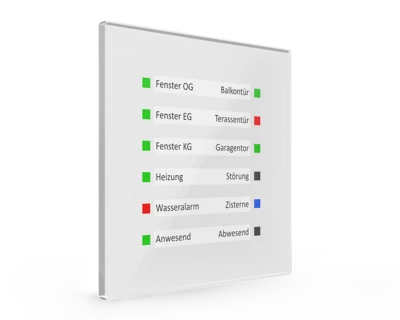

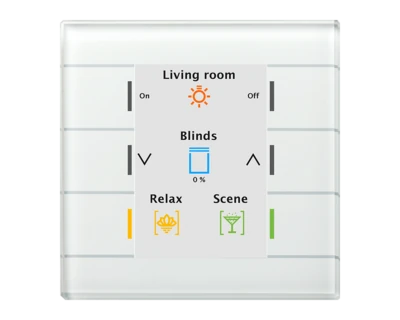

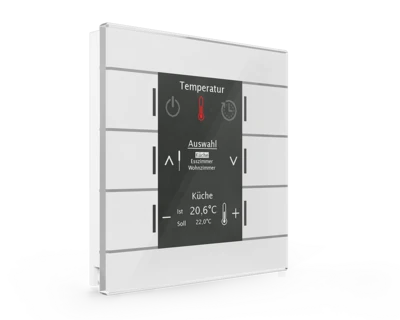

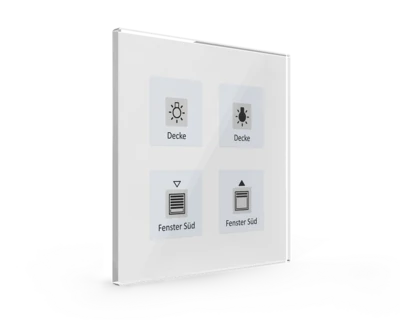

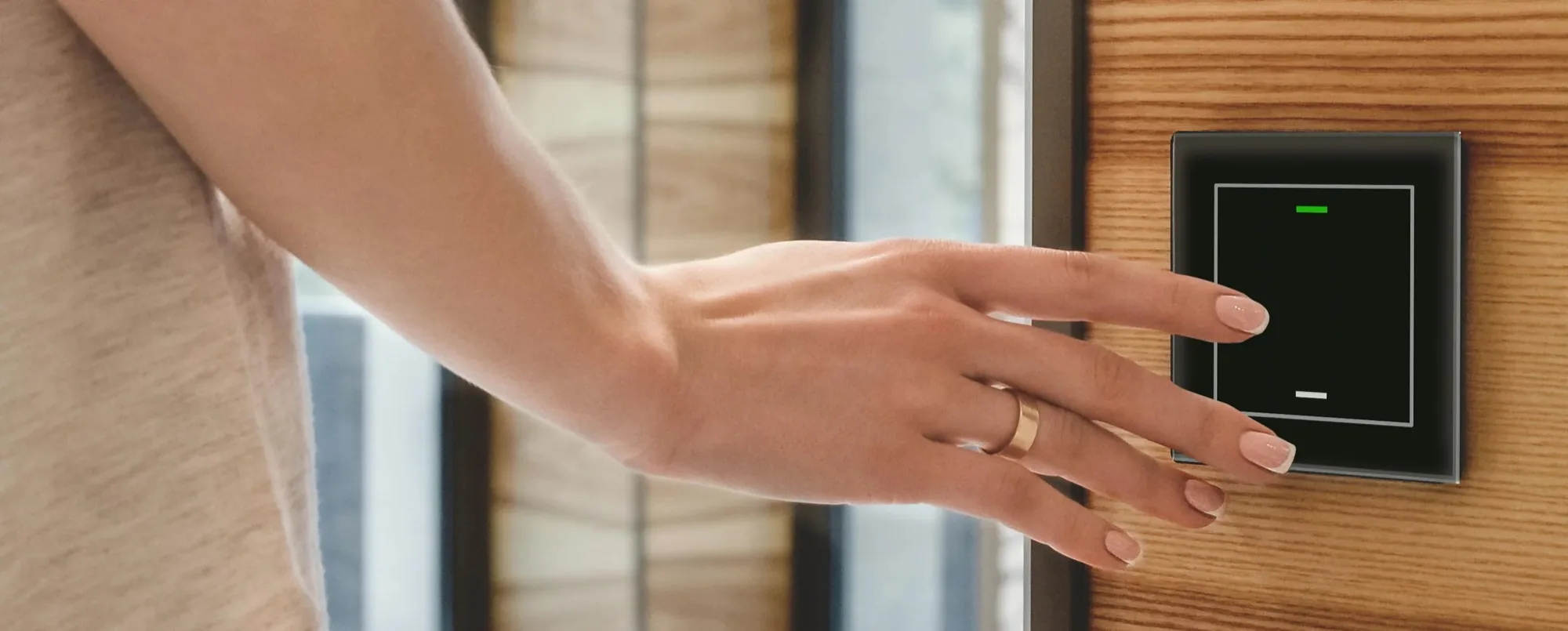

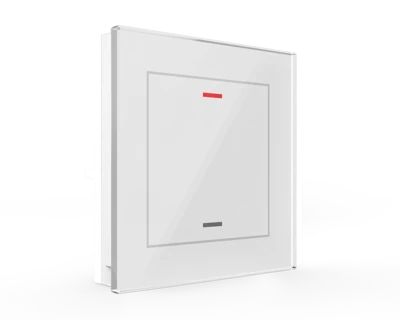

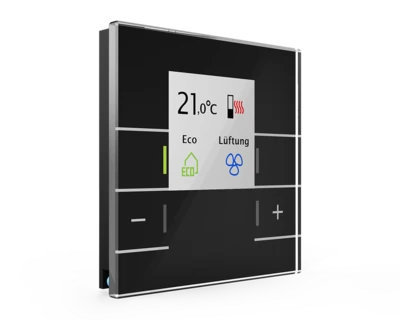

Glass push-buttons designed as design elements in their own right, with surfaces that are easy to clean. On the display models, colours, symbols and text are set in ETS.

Aurelio

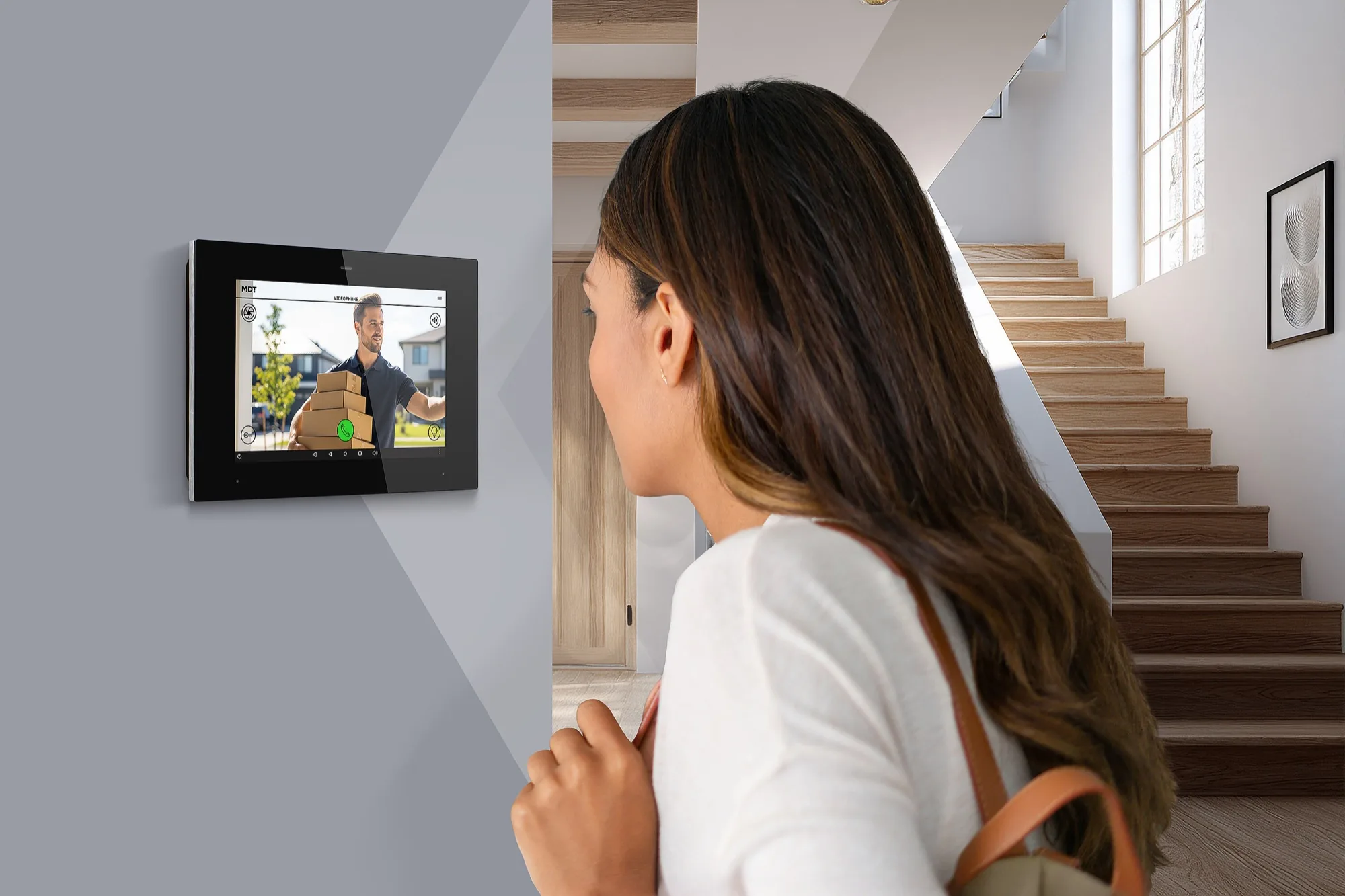

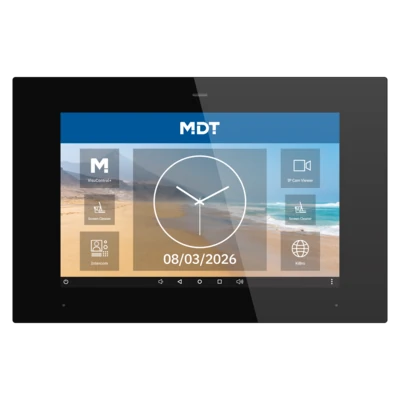

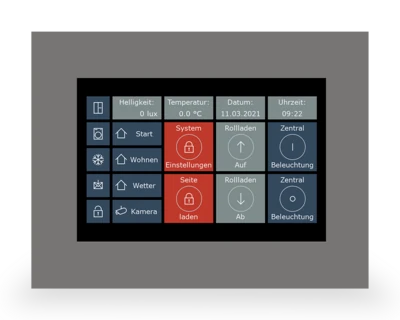

The VisuControl Plus touch panel has an 8-inch glass display for lighting, shading, climate and scenes, and can visualise up to 500 elements.

Motivio

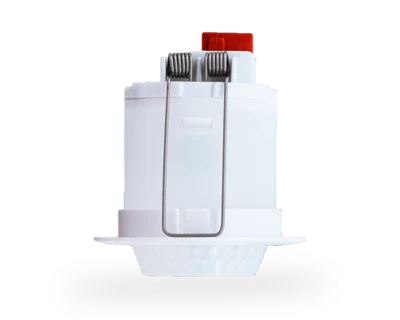

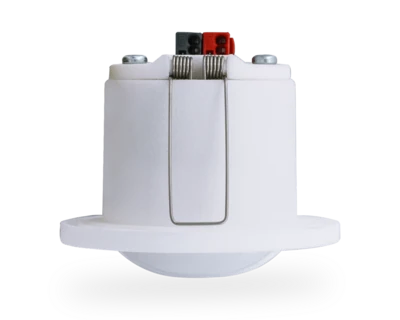

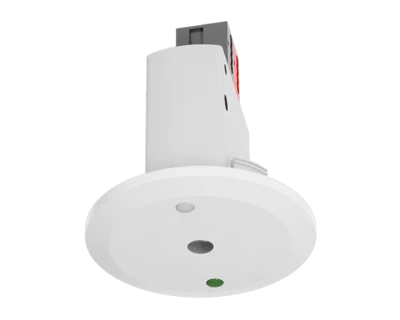

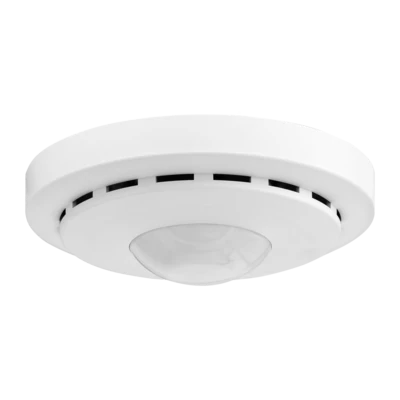

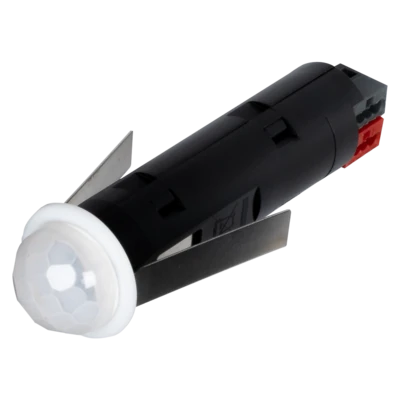

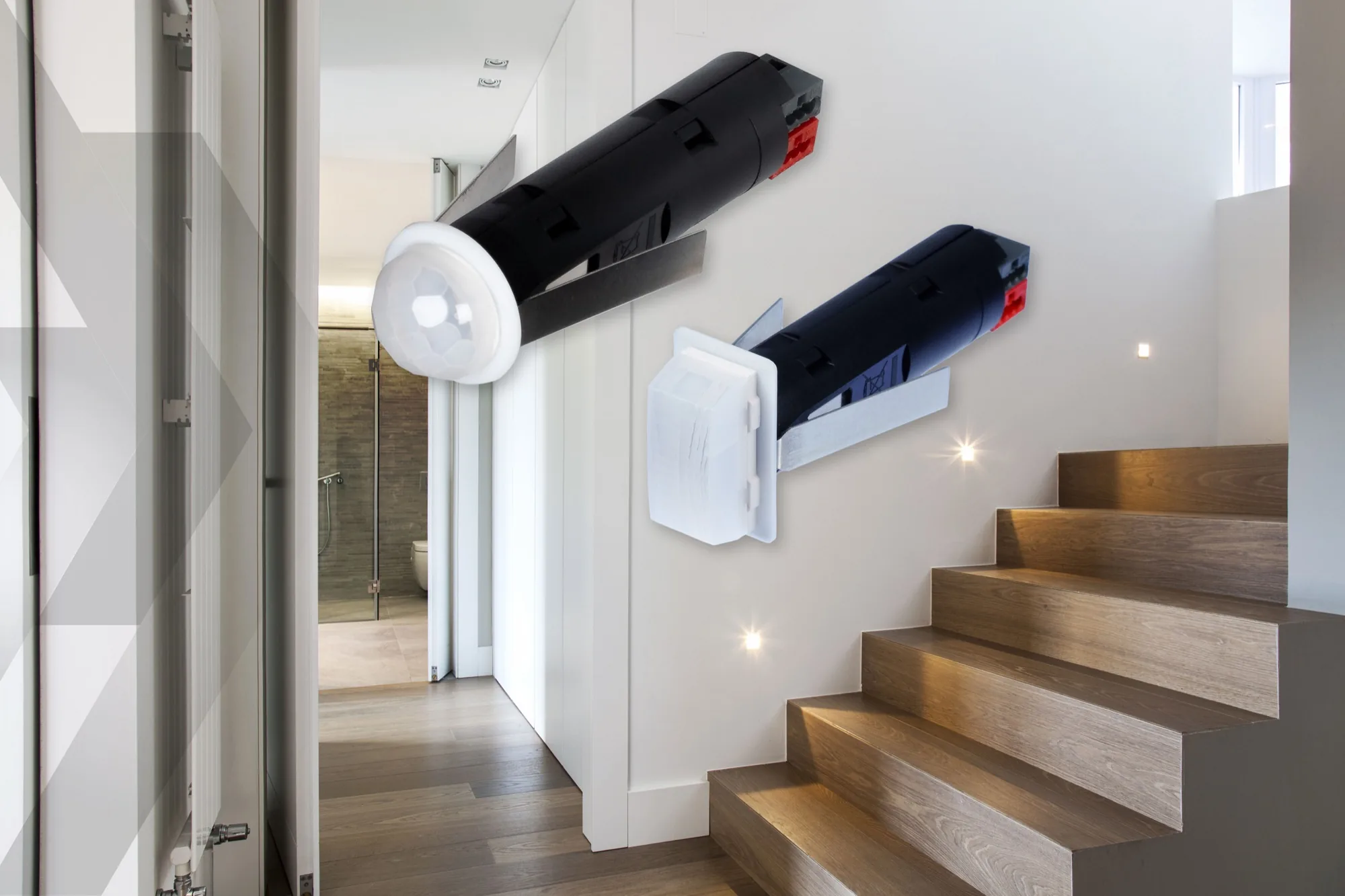

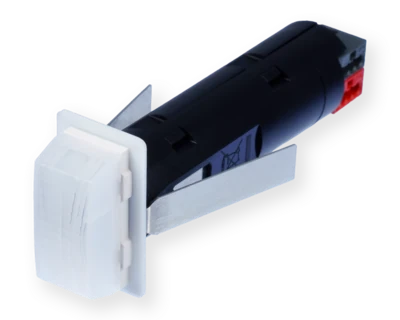

Presence and motion detectors for automatic occupancy detection. The Presence Detector 360° L3 TS has three sensors that are evaluated individually.

Varisio

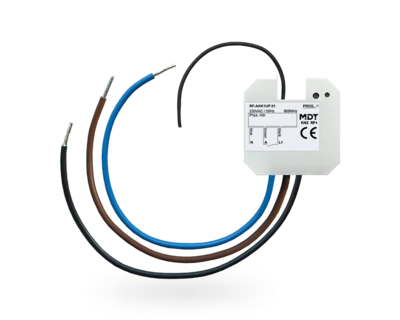

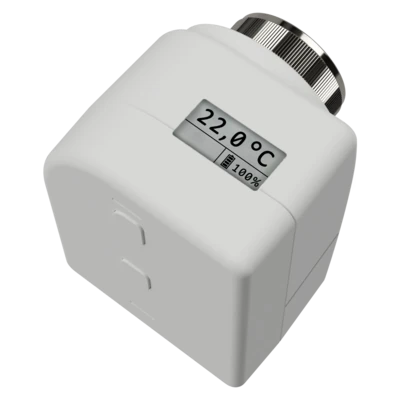

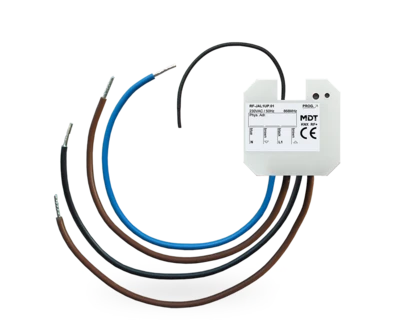

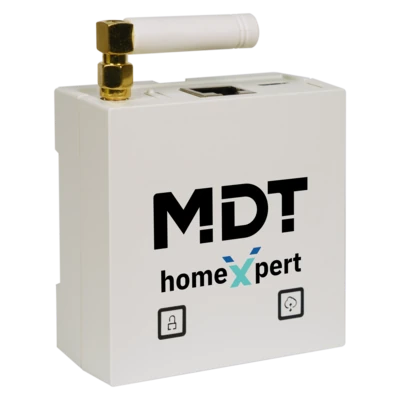

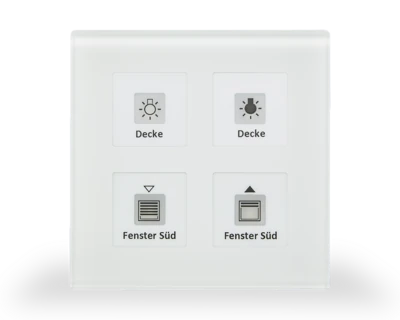

KNX RF+ wireless devices: push-buttons, switch and shutter actuators, heating valve drives and sockets, alongside the homeXpert server.

Sensario

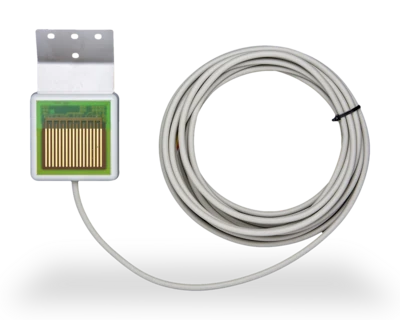

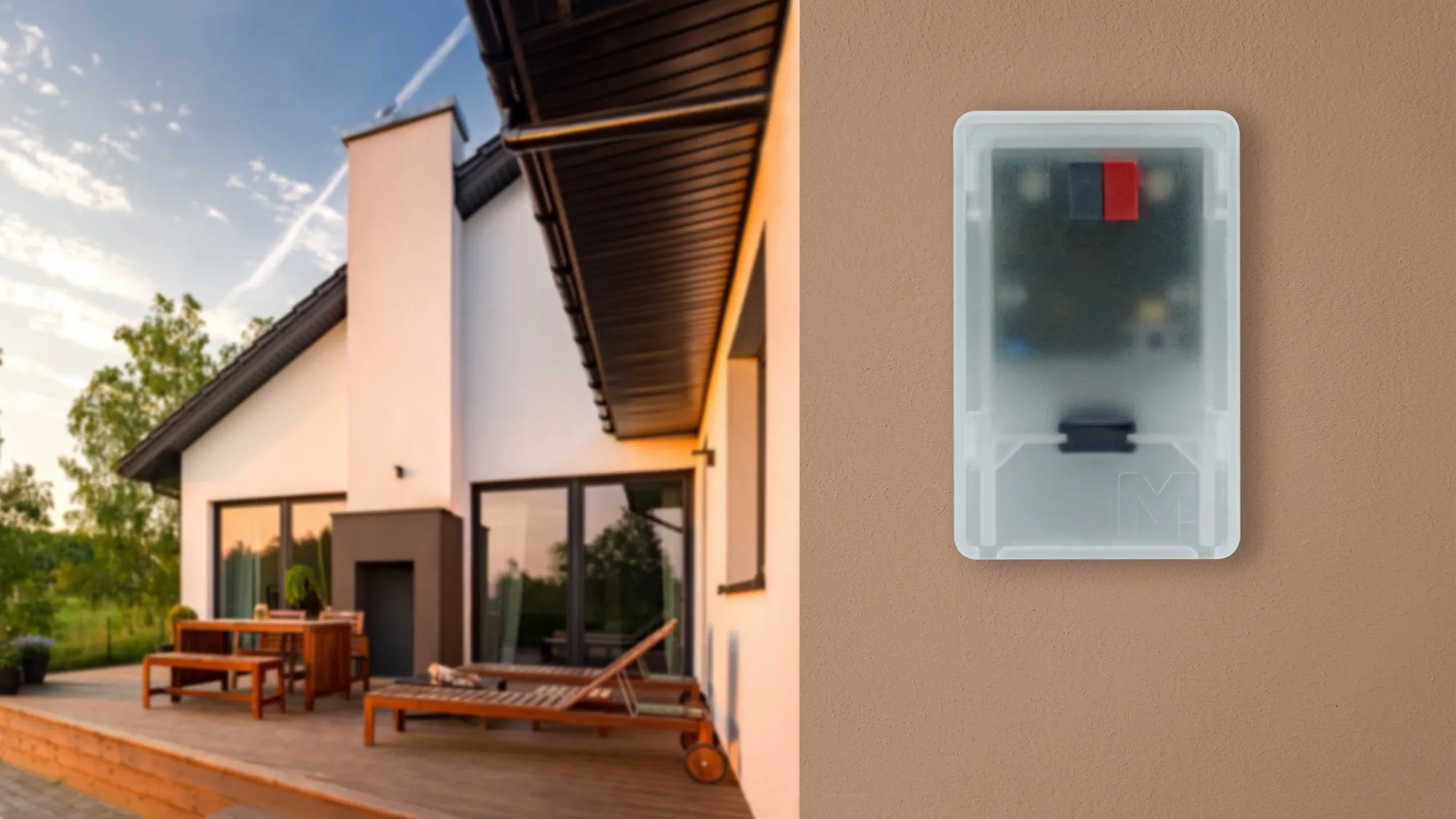

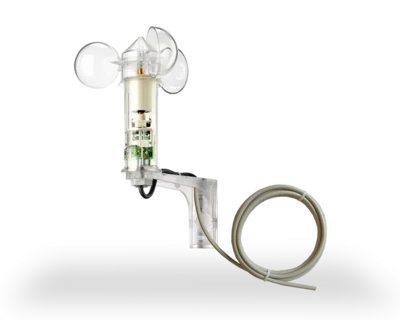

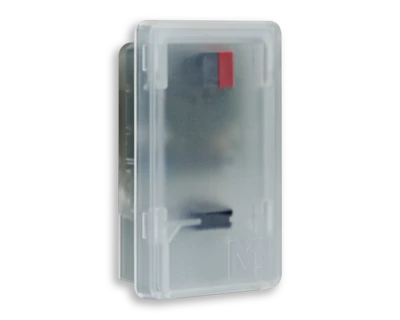

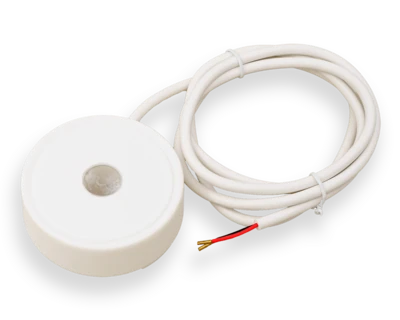

Components that measure conditions for the automation system, from temperature and humidity to CO₂ and brightness, including weather stations, rain sensors and twilight sensors.
