Who makes Trivum, and where?

trivum technologies GmbH is a German manufacturer based in Stuttgart. Trivum says its products are developed and built in Germany.

What does Trivum sell?

Multiroom audio: RP modules for the DIN rail, Matrix SoundSystems including the M2, the RA410v2 stereo amplifier and the SCW165 built-in loudspeaker. SoundSystems combine into up to 64 zones.

Does Trivum make speakers?

Yes: the SCW165, a built-in ceiling or wall loudspeaker sold as a pair, rated 160 W peak. Most Trivum SoundSystems also have amplifiers built in, so they drive passive speakers from other brands too; the SC040m feeds external amplifiers instead.

How does Trivum connect to the building's controls?

KNX is built into every Trivum SoundSystem. It connects through a KNX IP router or IP interface and is set up in a web browser, with no ETS programming. Control4 and RTI integrations are available too.

Which music sources work?

Web radio (TuneIn), AirPlay 2, Spotify Connect, Deezer, Tidal, Qobuz and SoundMachine, plus music on USB drives. The M2 adds Bluetooth, and the SC344m and RP models also have FM/DAB+ tuners.

Which model suits a larger room or a terrace?

The M2: two zones from one unit at 4 × 125 W, or all four channels in one large zone. The RP modules cover one, two or four rooms from the distribution board, and the SC040m and SC344m cover four zones each from the rack.

How do I enquire in India?

Morion Automation is the authorised distributor in India. Use Book a consultation, or write to info@morion.in.

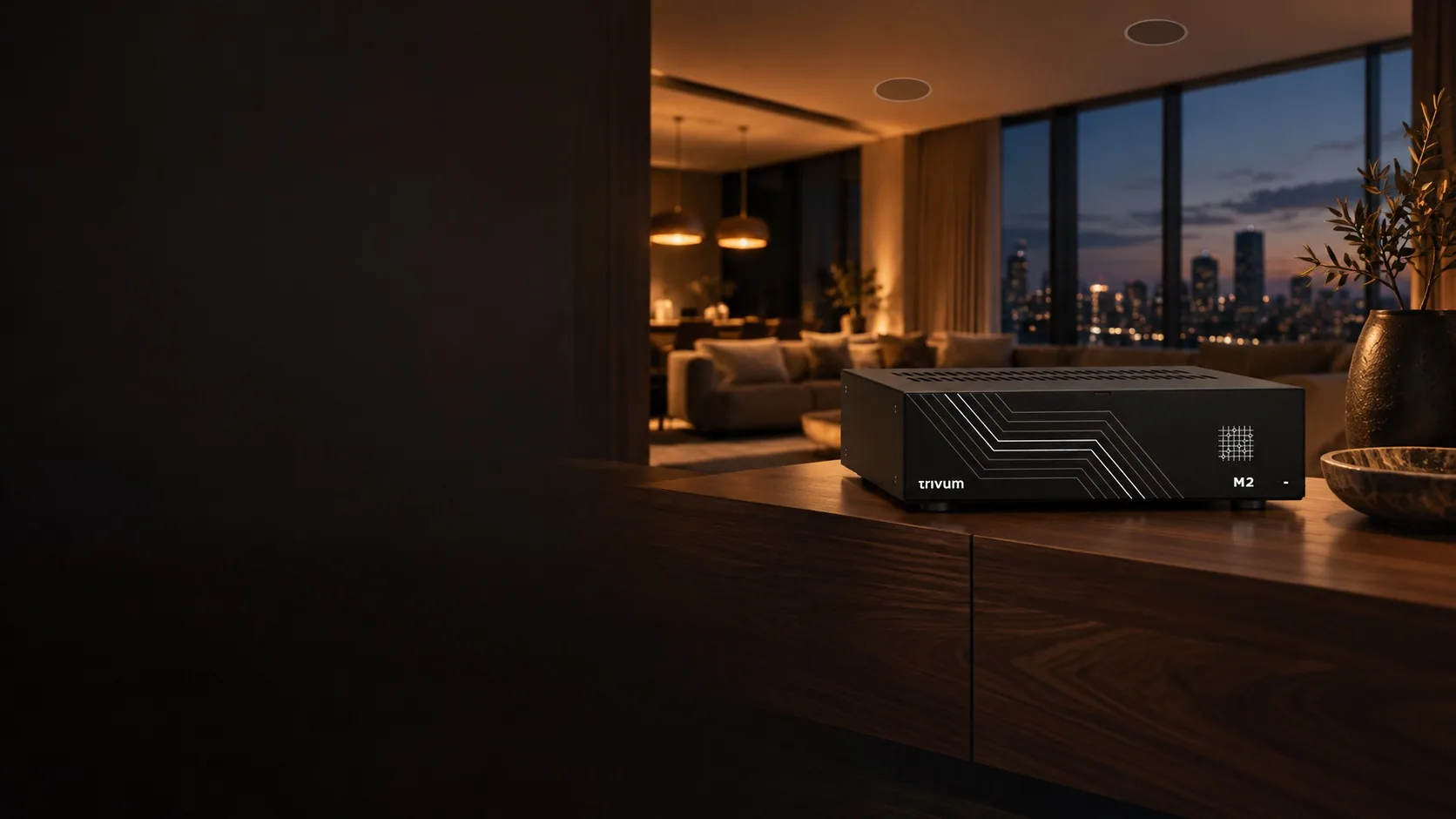

A Trivum M2 on a walnut console in a lounge at dusk, with round ceiling speakers above the sofa and the city lit up beyond the windows

Brands06

Multiroom audio systems and speakers · Stuttgart, Germany

Trivum

Trivum makes multiroom audio for the distribution board and the rack: RP modules on the DIN rail, Matrix SoundSystems including the new M2, the RA410v2 amplifier and the SCW165 built-in speaker. Systems combine into up to 64 zones.

What sets Trivum apart

Four features built into the systems on this page.

Trivum Matrix
(01)

M2 · SC040m · SC344mUnits link with a USB-C cable and share their sources DSP to DSP, not over the network, so grouped zones play in sync with no delay.
KNX built in
(02)

Every SoundSystemThe KNX connection is built in from the start: choose a KNX router or IP interface in a browser and map wall-button telegrams to actions, with no ETS programming.
KNX integration on trivum.com ↗
Connected Spaces
(03)

Open-plan roomsKitchen, dining and living areas keep their own speakers and volume but always play the same music: a permanent link instead of grouping.
Connected Spaces on trivum.com ↗
Autosensing
(04)

Every model with a line inputMusic starts as soon as a signal reaches a line input. On the TV input the volume is fixed, and the TV remote takes over.
Read more on trivum.com

New

Trivum M2

The new M2 drives two zones at 4 × 125 W, for large living spaces and terraces. Trivum built it to replace the SC311m: 125 W instead of 30 W per channel, and two zones instead of one.

See the M2 on Trivum's website

The range

Eight products: three RP modules for the DIN rail, three Matrix SoundSystems for the backend, a stereo amplifier and a built-in loudspeaker.

RP modules

Self-contained SoundSystems for the distribution board (DB): streamers and amplifiers built in, mounted on the DIN rail and powered by an external 24 V supply.

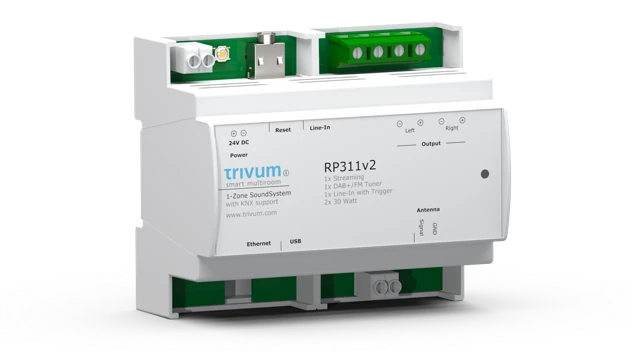

RP311v2

One room, on the DIN rail.

Zones1 zone, 2 × 30 W
TunerFM/DAB+
Line input1, analogue (3.5 mm jack)
Size6 DIN units

See RP311v2 on Trivum's website

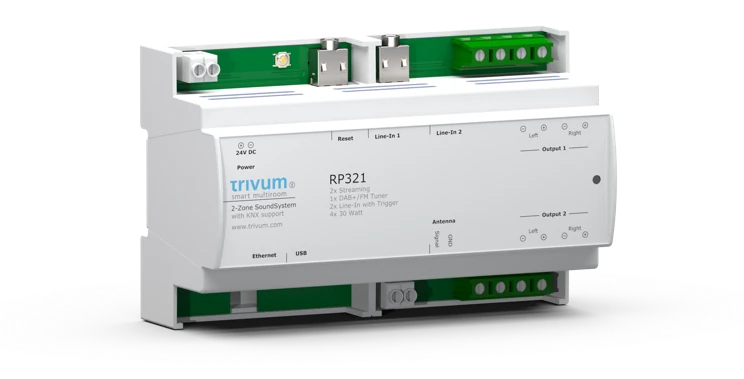

RP321

Two independent zones from one DIN-rail unit.

Zones2 zones, 4 × 30 W
Streamers2, one per zone
Line inputs2, analogue (3.5 mm jack)
TunerFM/DAB+
Size8 DIN units

See RP321 on Trivum's website

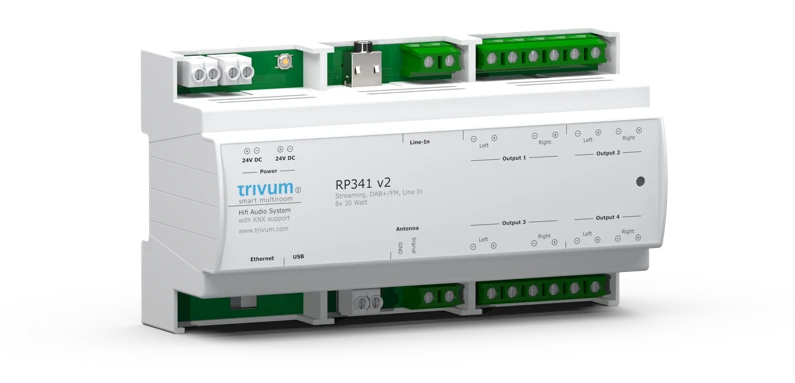

RP341v2

Four rooms from one DIN-rail unit.

Zones4 zones, 8 × 30 W
Streamers4, one per zone
TunerFM/DAB+
Size9 DIN units, two 24 V supply inputs

See RP341v2 on Trivum's website

Matrix SoundSystems

The backend, in the rack or on a shelf. Units share their sources with each other over Trivum Matrix.

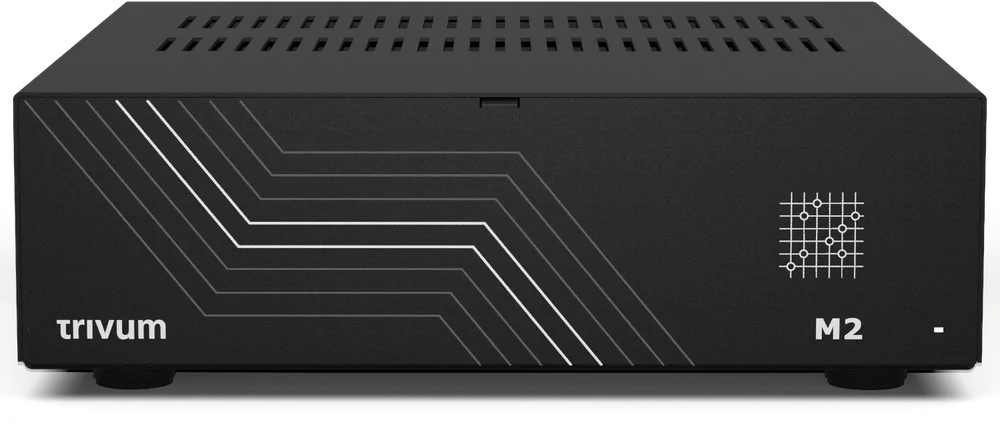

M2

New. Two high-power zones from one unit.

Zones2 zones, 4 × 125 W at 4 Ω, or all four channels in one large zone
BluetoothBuilt in
Inputs and outputs1 in, 1 out, optical (TOSLINK) or analogue
CoolingFanless, made to stand in the room; a fan version is available
RadioInternet radio; no FM/DAB+ tuner

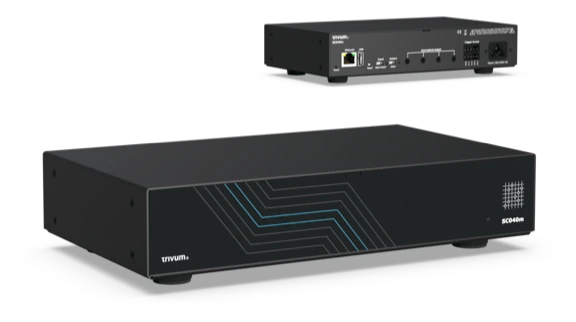

SC040m

Streaming for four zones, made for your own amplifiers.

AmplifierNone: 4 outputs, analogue or digital, feed external amplifiers
Streamers4, one per zone
Triggers8, each set as an input or an output, for example to switch the amplifiers on only while music plays
SizeHalf 19", two fit side by side in a rack
Matrix1 in, 1 out

See SC040m on Trivum's website

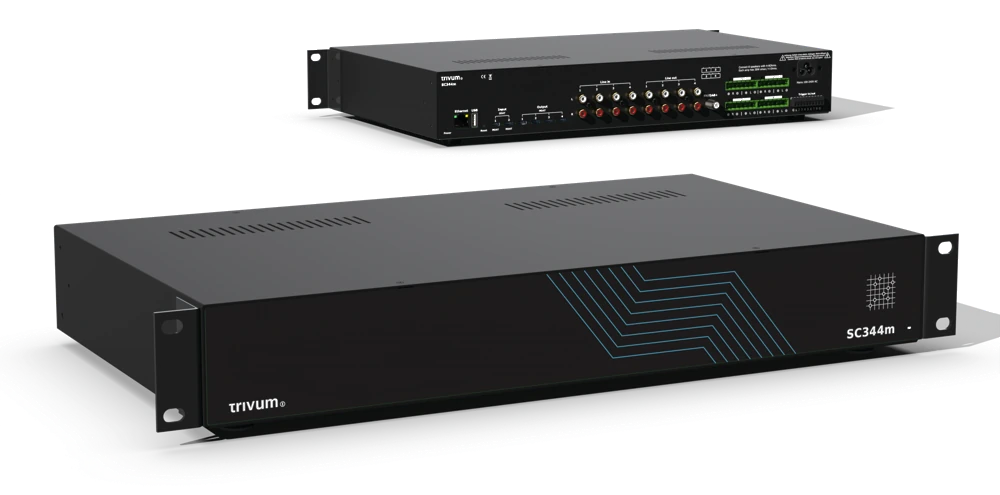

SC344m

Trivum's most versatile system, and its best-seller.

Sources12: 4 streamers, 4 FM/DAB+ tuners and 4 analogue RCA inputs
Zones4 zones, 8 × 30 W
Line outputs4, for a subwoofer or an external amplifier
Matrix4 out, 2 in, to feed up to four more units
SizeFull 19", rack brackets included

See SC344m on Trivum's website

Amplifiers & speakers

A separate amplifier for passive speakers, and Trivum's own built-in loudspeaker.

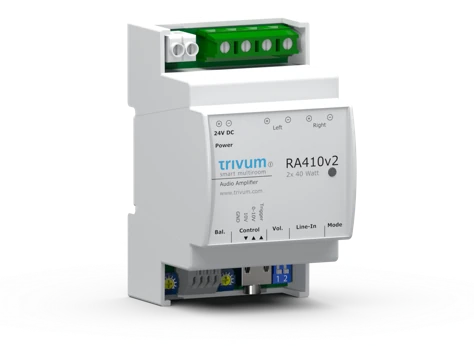

RA410v2

Stereo amplifier for the DIN rail, for passive speakers.

Power2 × 40 W into 8 Ω, down to 4 Ω
Volume0-10 V input, from a potentiometer, a smart-home controller or a KNX dimming actuator
On and offTrigger input
Setup2 DIP switches; 2 potentiometers set balance and maximum volume
NetworkNone; it is controlled by the signals above

See RA410v2 on Trivum's website

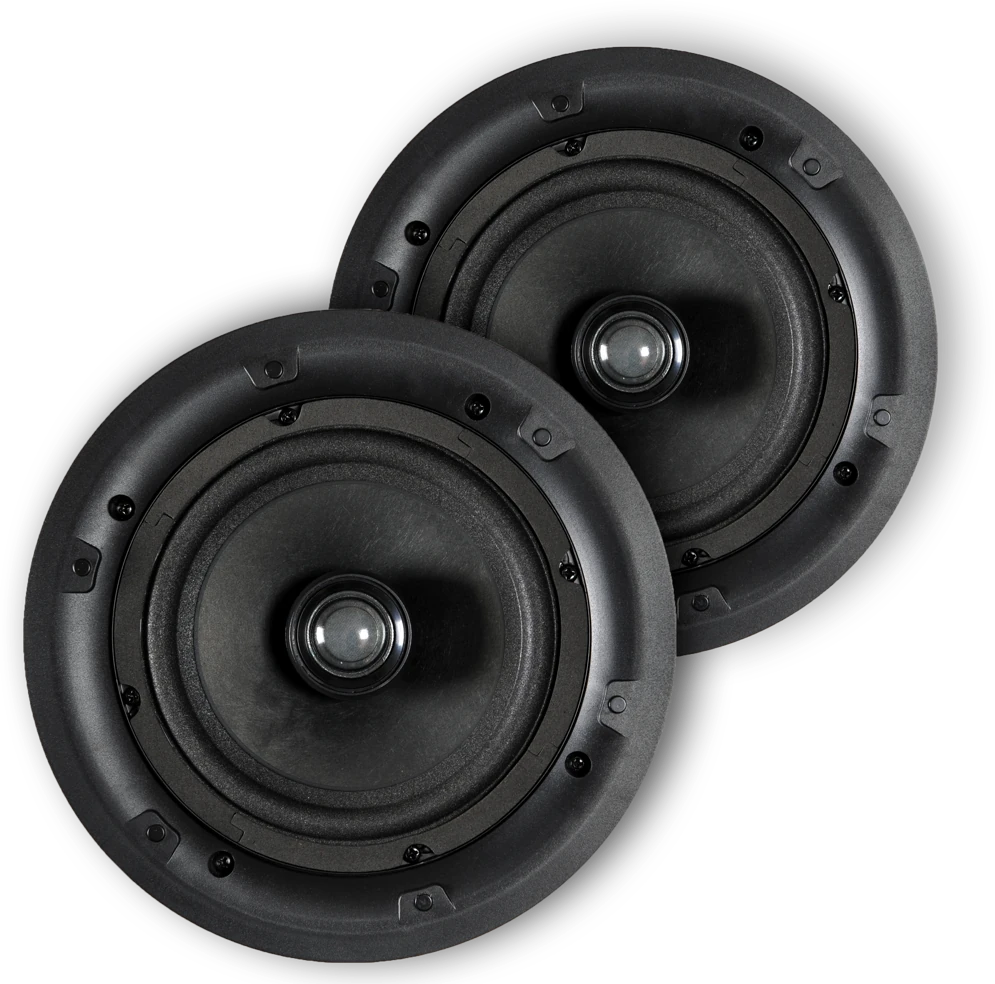

SCW165

Built-in ceiling or wall loudspeaker, sold as a pair.

Woofer165 mm
Rating160 W peak, 8 Ω, 92 dB/W
Depth80 mm installation depth
TweeterAdjustable level, to suit the room
CoversRound and square included, swappable without removing the speaker

See SCW165 on Trivum's website
