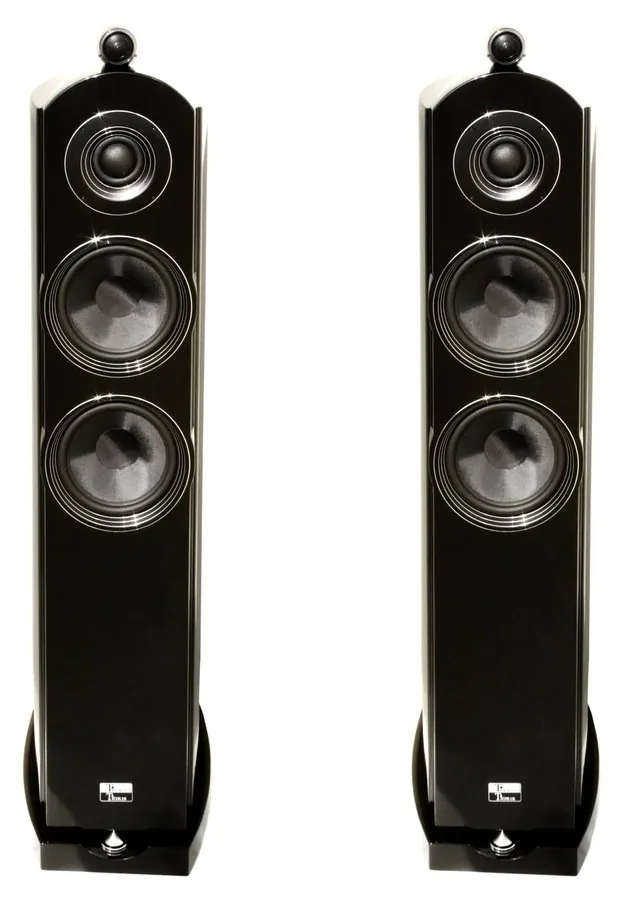

Tower speakers, pair
Dual 8-inch Kevlar long-excursion woofers, 2-inch silk-dome super midrange, 1-inch silk-dome NEO super tweeter.
BrandsEarthquake SoundBass
Felt before it is heard.
Earthquake Sound was founded in 1984 and designs subwoofers, bass shakers and amplifiers for home and commercial rooms. Tap a device below to hear a bass line inside its published range, then find the product that fits your room.
Find your quakeTap a device to hear a bass line inside its published range.
0Hz
Start with the volume low. Use headphones or a system with a subwoofer: laptop and phone speakers cannot reproduce the lowest notes. The audio is 30-second excerpts of commercial recordings, not recorded through an Earthquake product.
Recognition · as listed on Earthquake Sound's history page

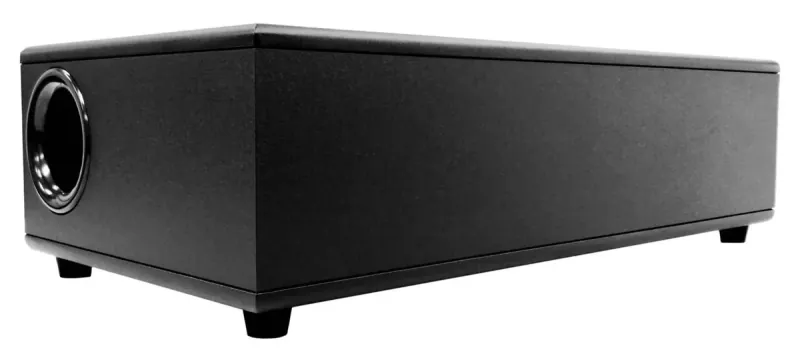

- 2010 · CES Innovations AwardCouch Potato CP8
- 2008 · CES Innovations Award, Audio AccessoriesQuake 10.0 Tactile Transducer
- 2006 · Home Theater Rave AwardCinénova Grande 7
The range
Frequency ranges as published by Earthquake Sound
Speakers
Tower, bookshelf, in-wall, in-ceiling and outdoor speakers, one row for each category. Scroll a row sideways. Sizes and types follow Morion's price list.
Tower and centre
Floor-mount towers in a black piano lacquer finish, and a centre channel.

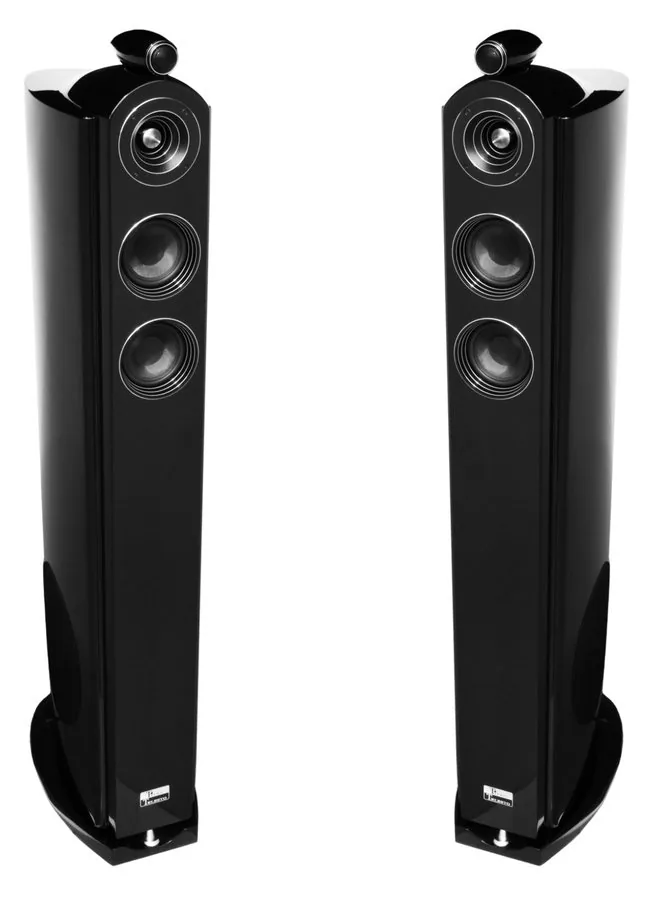

Tower speakers, pair
8-inch long-excursion side woofer, dual 4-inch long-excursion mids, one compression and one NEO tweeter.

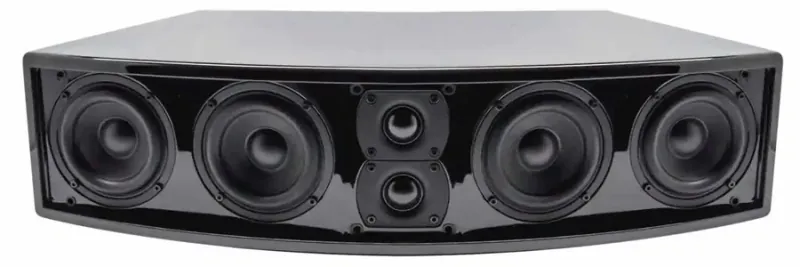

Centre channel speaker, each
Four 4-inch Kevlar mids, two 1-inch silk dome tweeters, SLAPS10, adjustable.
Bookshelf
Passive bookshelf monitors and powered studio monitors.

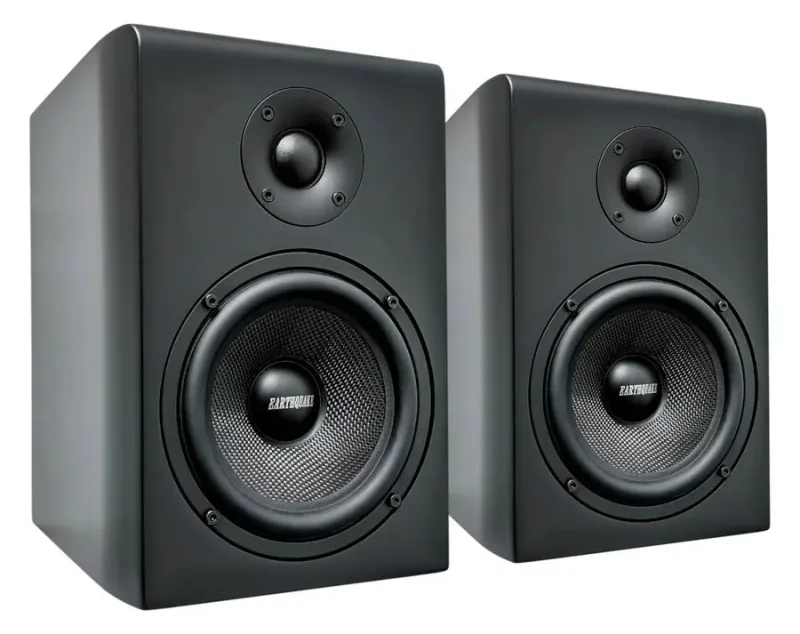

Bookshelf speakers, pair
5.25-inch two-way passive monitors, 1-inch silk dome tweeter, matte black, magnetic grilles. Range is +/-3 dB.

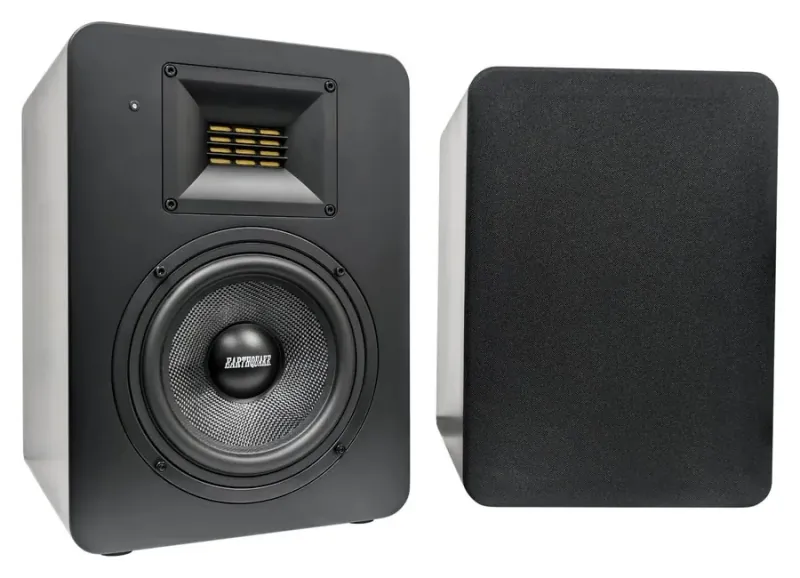

Powered studio monitors, pair
Two-way, 6.5-inch carbon fibre mid-bass driver, 2-inch ribbon tweeter. Range is measured at -10 dB.
In-wall and LCR
Cinénova Clarté LCRs in-wall and on-wall, and edgeless in-wall speakers.

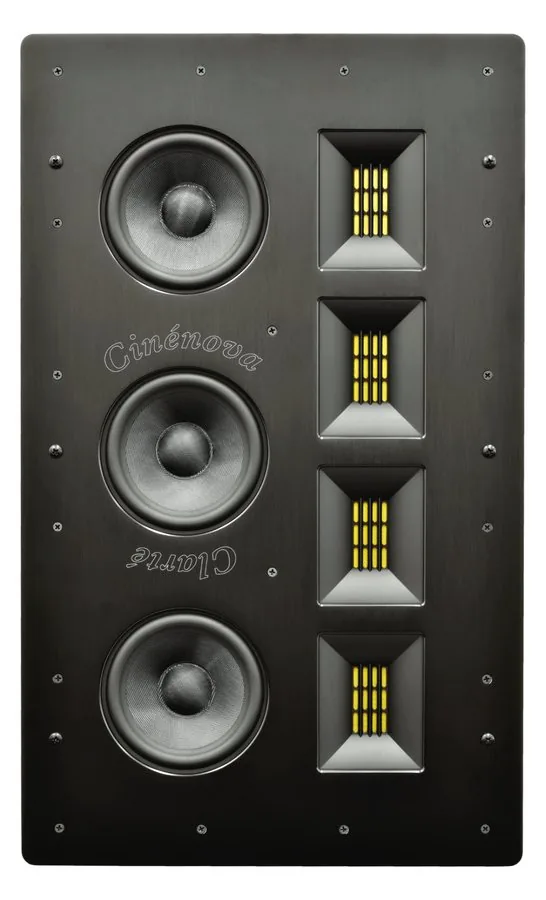

LCR speakers, each
Four 2-inch ribbon tweeters and three 5.25-inch carbon fibre mid-bass drivers; magnetic grille on the in-wall IW-C5.
- IW-C5In-wall55 Hz–20 kHz
- OW-C5On-wall55 Hz–20 kHz

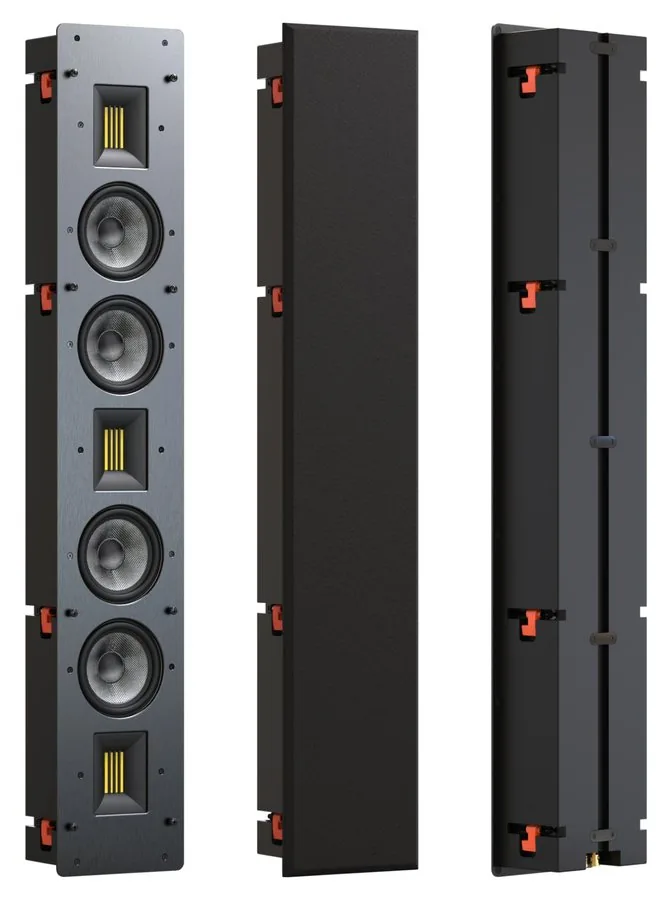

Long-array LCR speakers, each
Four 5.25-inch glass-fibre mid-bass drivers and three 2-inch ribbon tweeters, magnetic grille.
- IW-4503In-wall80 Hz–40 kHz
- OW-4503On-wall80 Hz–40 kHz

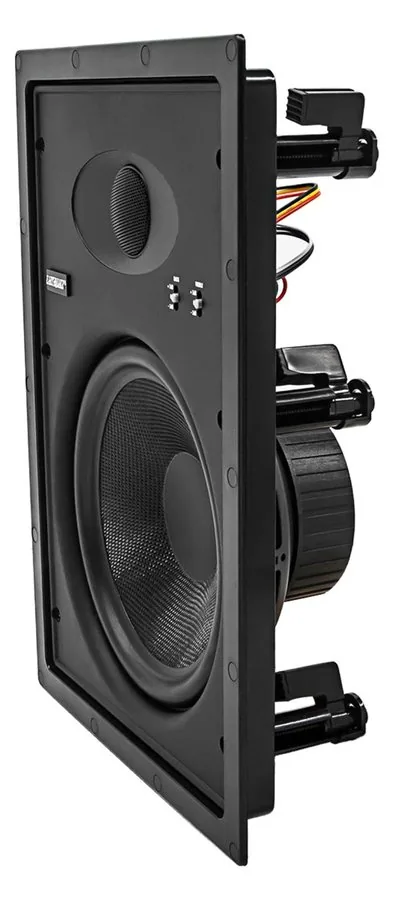

Edgeless in-wall surround speakers
The EWS800 has a 12 dB crossover.
- EWS6006.5-inch surround, pair40 Hz–20 kHz
- EWS8008-inch surround, pair30 Hz–20 kHz

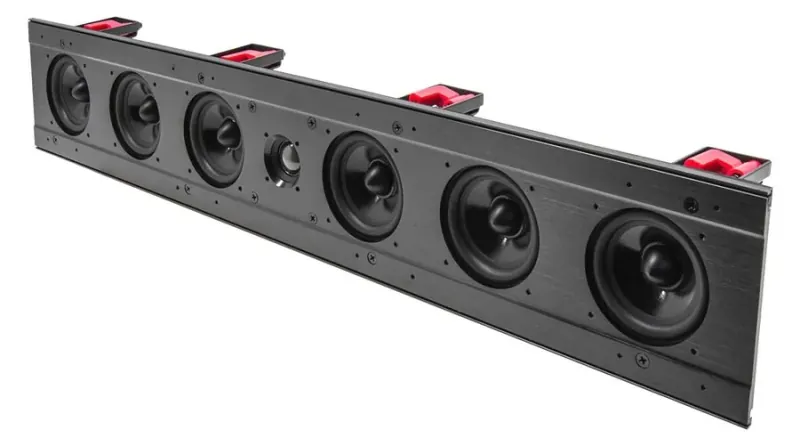

Edgeless in-wall centre and LCR speakers
The EWS-LA63 has six 3-inch speakers and one tweeter in an aluminium chassis.
- EWS530C3-way centre channel, each40 Hz–20 kHz
- EWS-LA63LCR line array, each
In-ceiling
Reference, IQ and architectural ceiling speakers, and small and angled edgeless models.

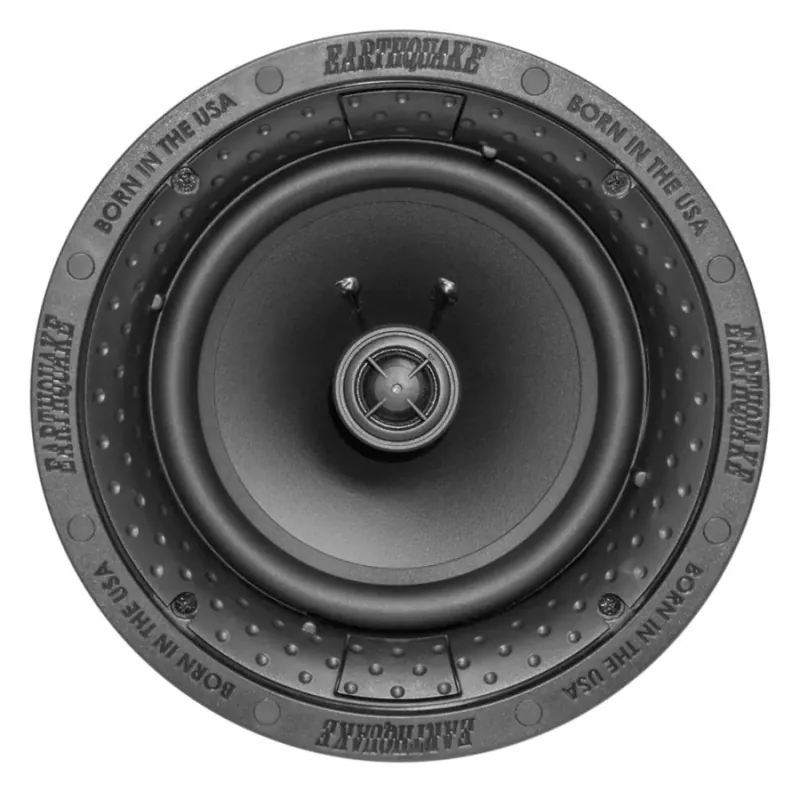

Edgeless reference ceiling speakers
- R6D6.5-inch stereo, priced by piece45 Hz–20 kHz
- R8D8-inch stereo, priced by piece45 Hz–20 kHz
- R6506.5-inch two-way, pair45 Hz–20 kHz
- R8008-inch two-way, pair45 Hz–20 kHz

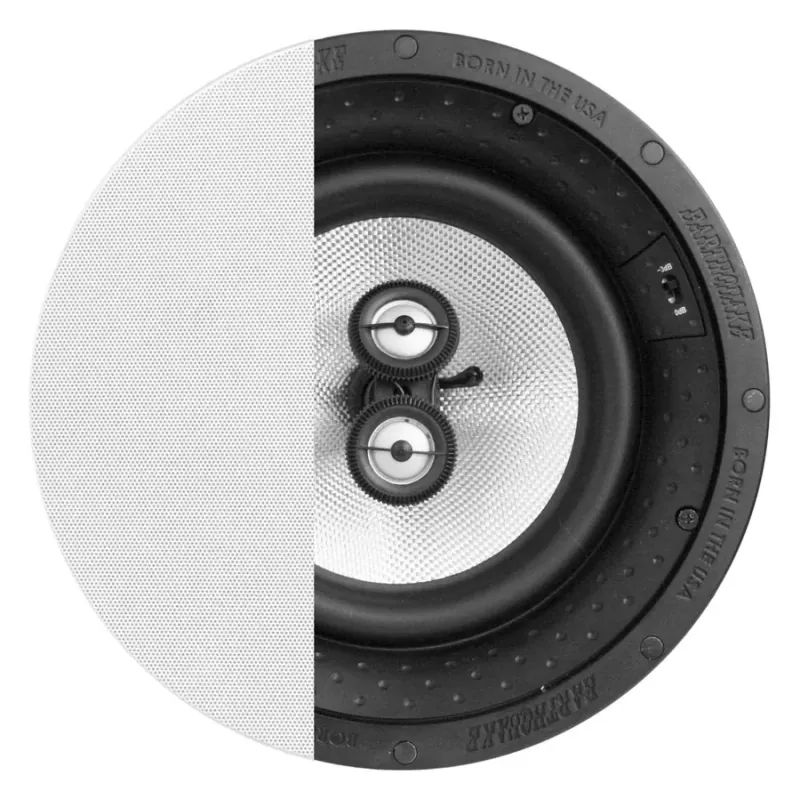

Edgeless ceiling speakers
- IQ6D6-inch, dual tweeters, dual voice coil, each40 Hz–21 kHz
- IQ8D8-inch, dual tweeters, dual voice coil, each30 Hz–21 kHz
- IQ6S6-inch, dual swivel tweeters, pair40 Hz–21 kHz
- IQ8S8-inch, dual swivel tweeters, pair30 Hz–21 kHz

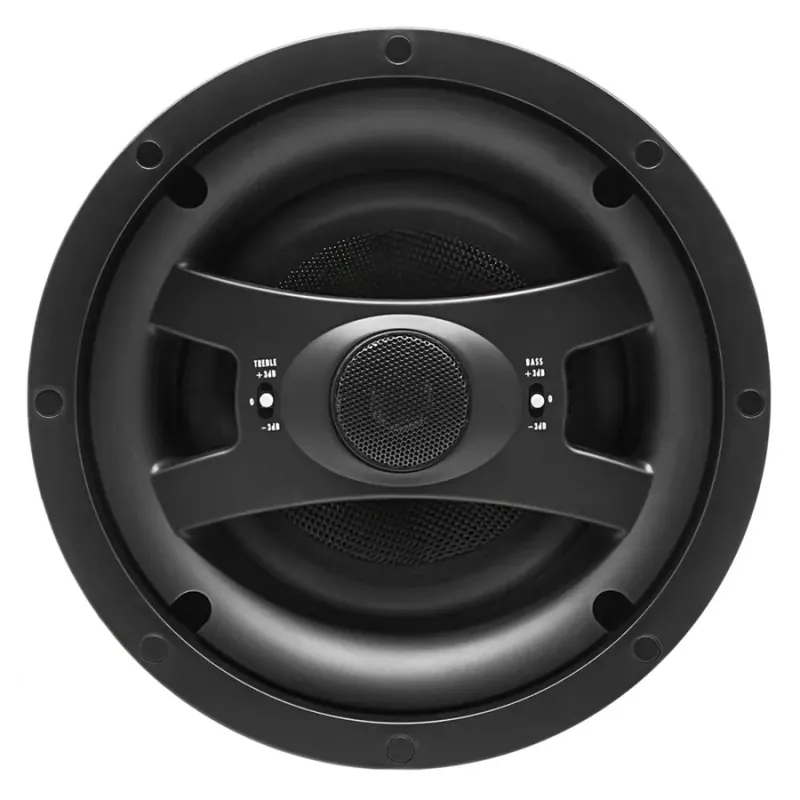

Architectural ceiling speakers
- ECS6.56.5-inch, round grilles, pair40 Hz–20 kHz
- ECS8.08-inch, round grilles, pair30 Hz–20 kHz
- ECS6Dual6.5-inch stereo, dipole and bipole, each
- ECS8Dual8-inch stereo, dipole and bipole, each
Edgeless ceiling speakers, 3 to 8 inch
- ECS3.03-inch, built-in grille, pair150 Hz–20 kHz
- ECS4.0 v24-inch, built-in grille, pair80 Hz–10 kHz
- OH-66.5-inch 2-way coaxial, one-handed EZ Mount, pair

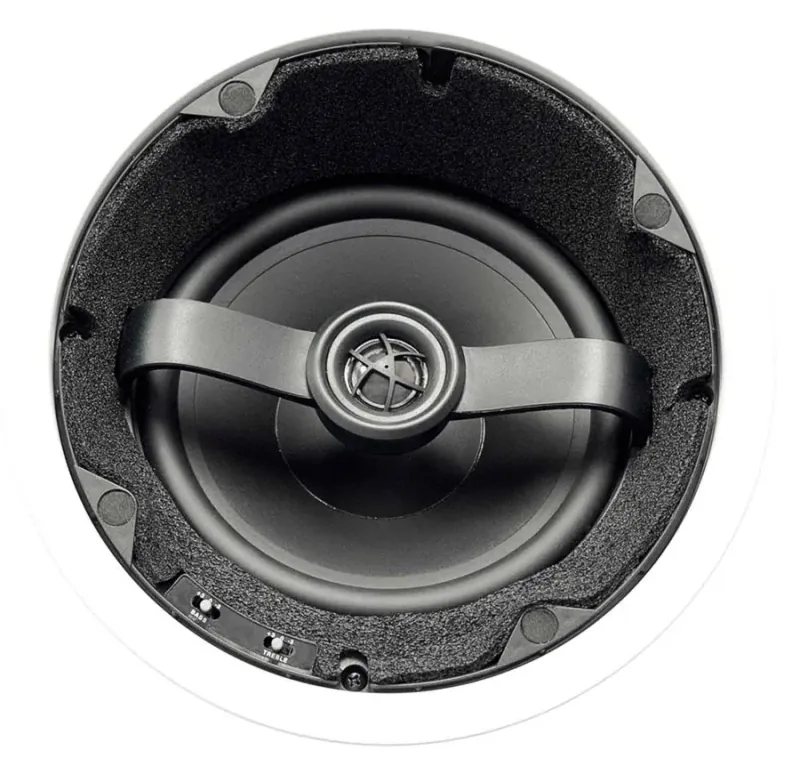

- ECS-SS828-inch angled, each30 Hz–30 kHz
Outdoor
Rock-look garden speakers and a subwoofer, weather-proof on-wall speakers, and a 70V/100V commercial speaker and pendant.

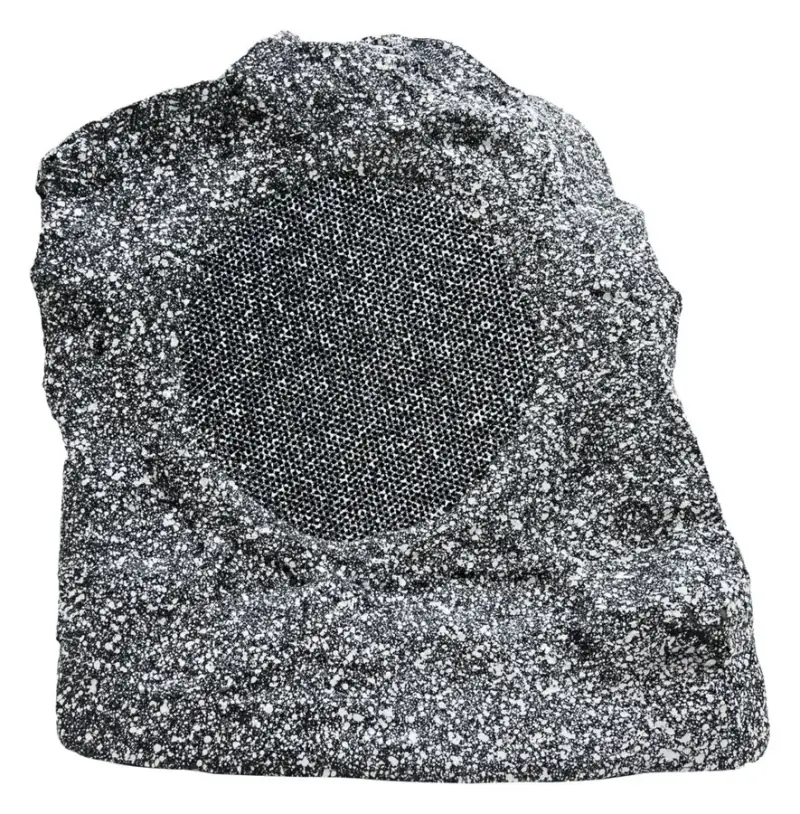

Rock-look speakers and subwoofer
Limestone or granite finish. For the Limestone-82, Earthquake gives 40 Hz in the manual and 50 Hz in the product release, and the narrower range is shown.
- Limestone-828-inch two-way, each50 Hz–21 kHz
- Granite-525.25-inch two-way coaxial, pair50 Hz–21 kHz
- Granite-1010-inch ported subwoofer, dual 4-ohm voice coils (8 ohm wired in series), each30–100 Hz

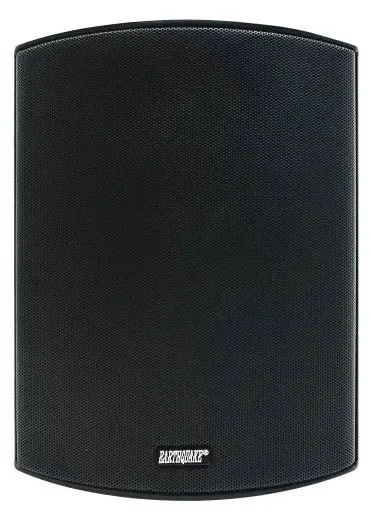

All-weather on-wall speakers
White or black finish, aluminium grilles and brackets.
- AWS502W and AWS502B5.25-inch woofer, 3/4-inch tweeter, pair68 Hz–20 kHz
- AWS602W-v2 and AWS602B-v26.5-inch woofer, 3/4-inch tweeter, pair65 Hz–20 kHz
- AWS802W-v2 and AWS802B-v28-inch woofer, 1 tweeter, each55 Hz–20 kHz

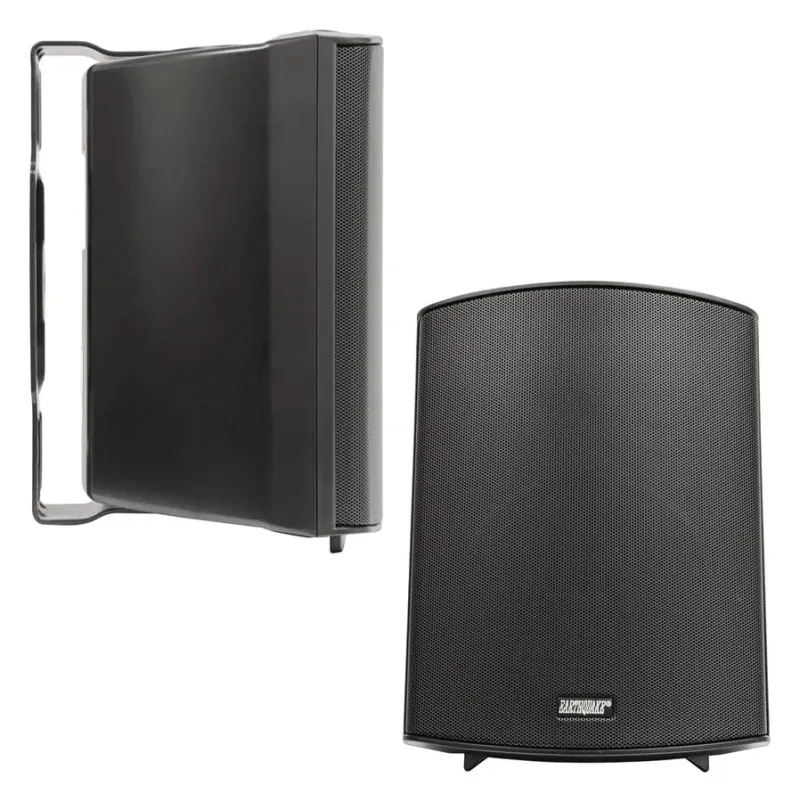

Commercial all-weather speaker, each
Black, with a built-in 70V/100V multi-tap transformer for commercial audio.

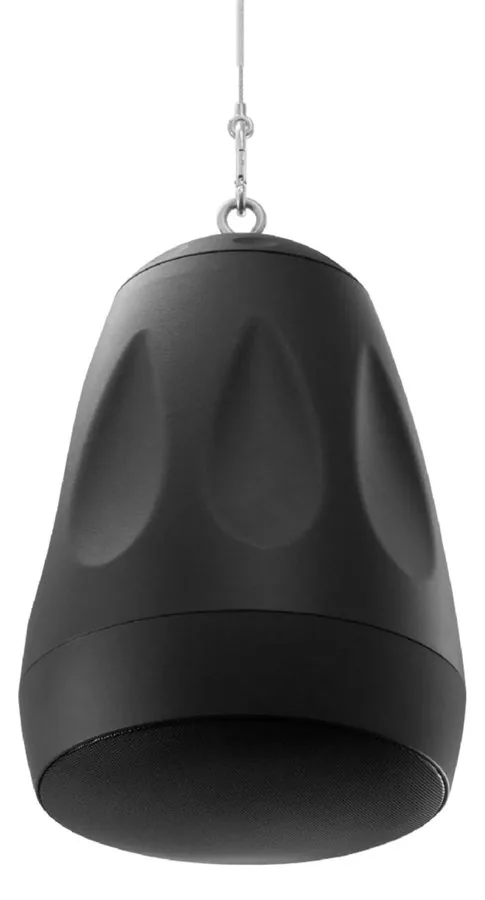

Pendant speaker, hang, wall or landscape mount
6.5-inch, with an 8-ohm, 25V, 70V and 100V selector. The datasheet lists both 30 Hz–22 kHz and 40 Hz–20 kHz.
- HangingPCS6.5 with the hanging mount option
- Surface mountPCS6.5 with the surface mount option
- LSA6.5 landscapePCS6.5 with the LSA6.5 landscape mount option
Subwoofers
Front-firing, Supernova MKVII, MiniMe DSP, ported and in-wall subwoofers, one row for each. Ranges are as published by Earthquake.
Front firing
Front-firing powered subwoofers in black ash.

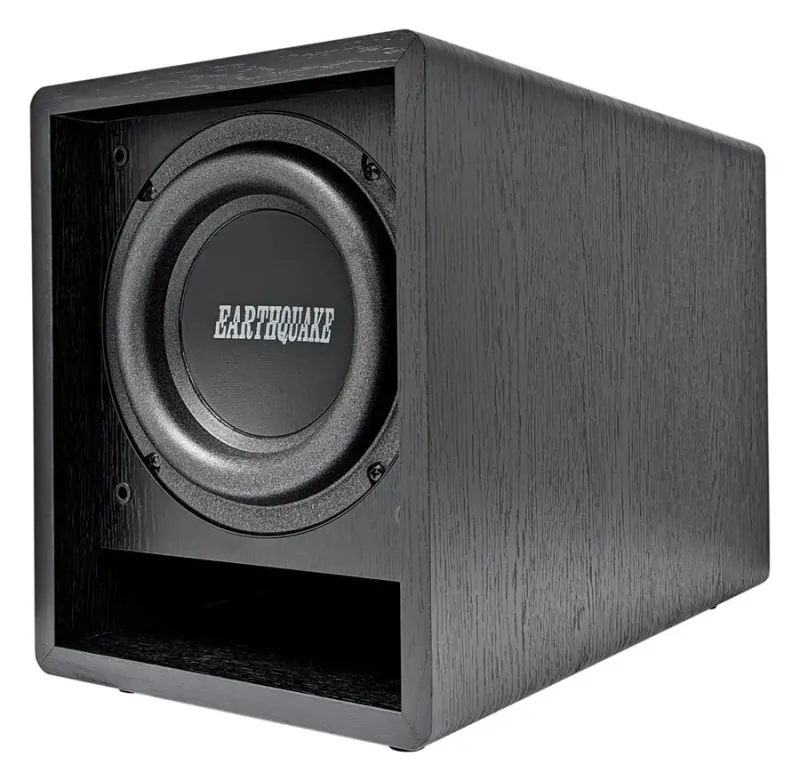

6.5-inch powered subwoofer
Transmission-line box, front port. 25 Hz on the cut sheet, 28 Hz in the manual.

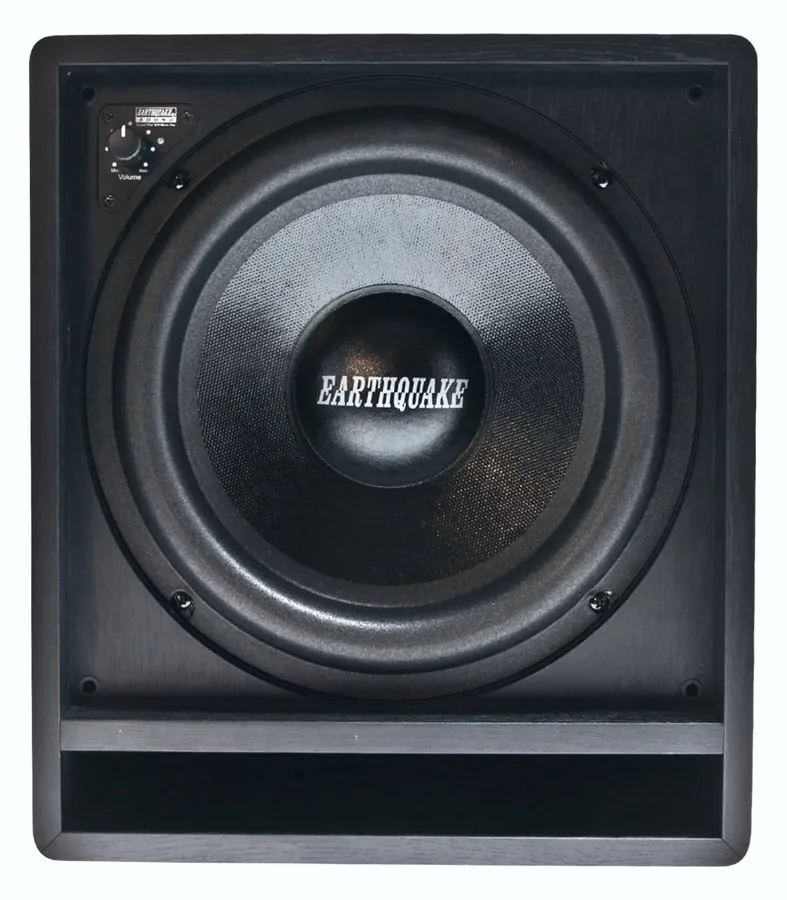

10-inch powered subwoofer
Front volume knob, front port.

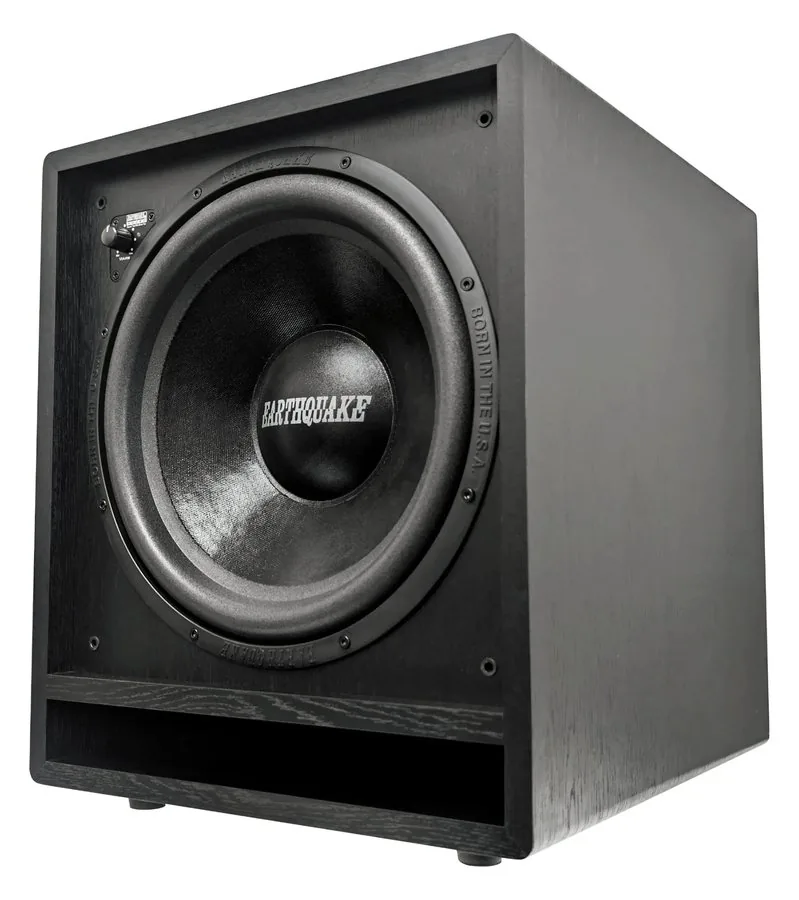

12-inch powered subwoofer
Front volume knob, front port. 20 Hz on the cut sheet, 25 Hz in the manual; the narrower range is shown.
Supernova MKVII
Earthquake's high-output powered subwoofers, with a Class D amplifier, in-app DSP crossover slopes up to 48 dB/octave, and RCA and balanced XLR inputs.

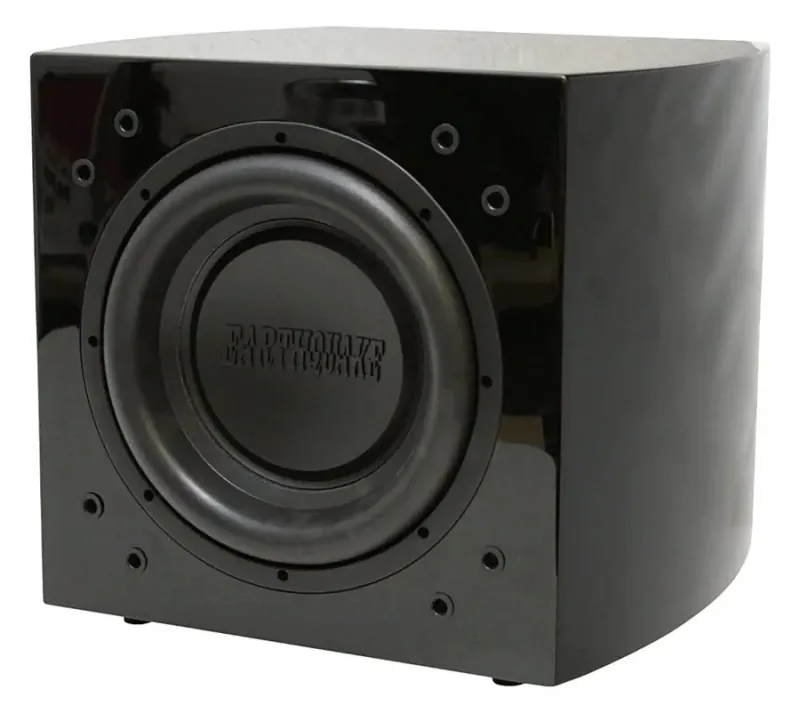

12-inch powered subwoofer, front-firing
Earthquake's MKVII manual gives 18–115 Hz.

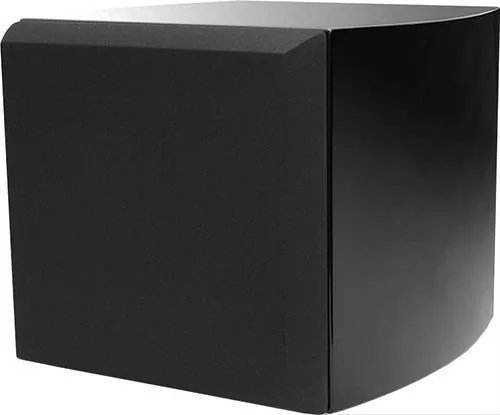

15-inch powered subwoofer, front-firing
Earthquake's MKVII manual gives 18–115 Hz.
Also in the series: MKVII-12P, a 12-inch with a SLAPS passive radiator.
MiniMe DSP
Compact powered subwoofers with Class D amplifiers, DSP and room correction through the iWoofer Pro phone app (a third-party app). The P-series use Earthquake's SLAPS passive radiator; the FF15 is sealed and front-firing.

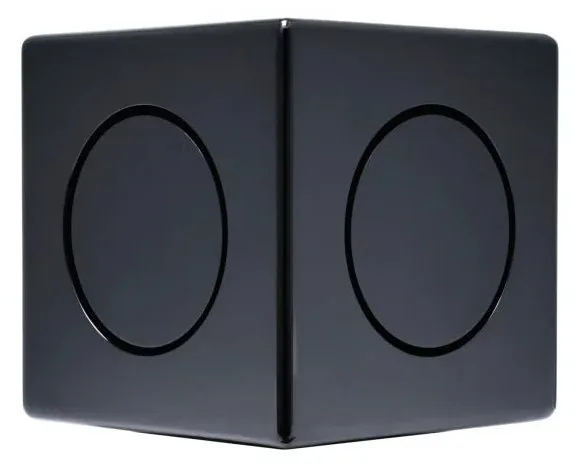

6.5-inch powered subwoofer, two passives

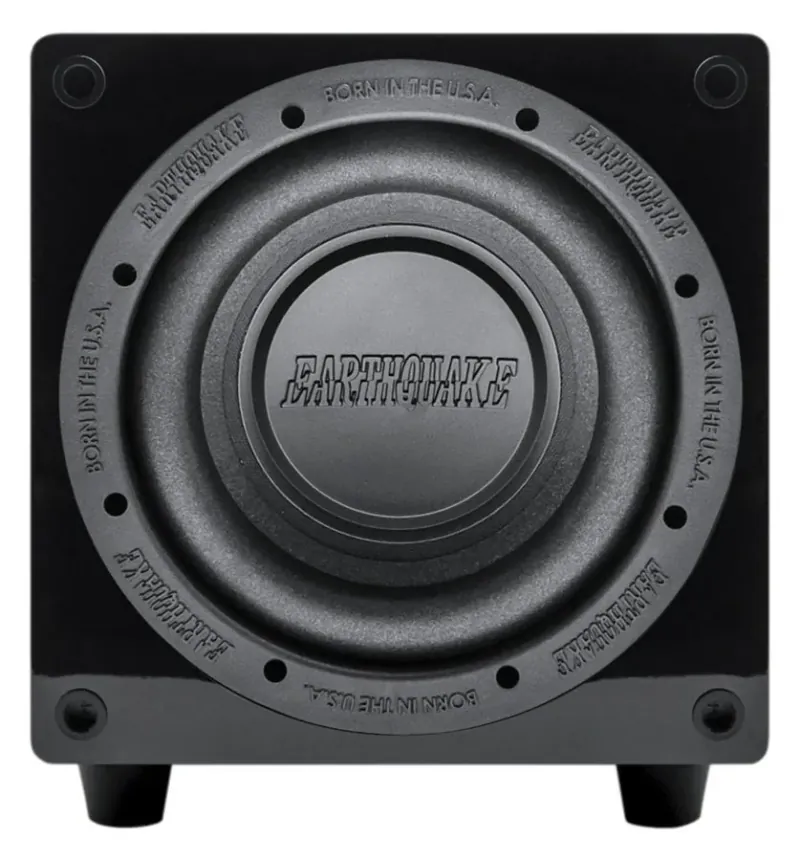

8-inch powered subwoofer

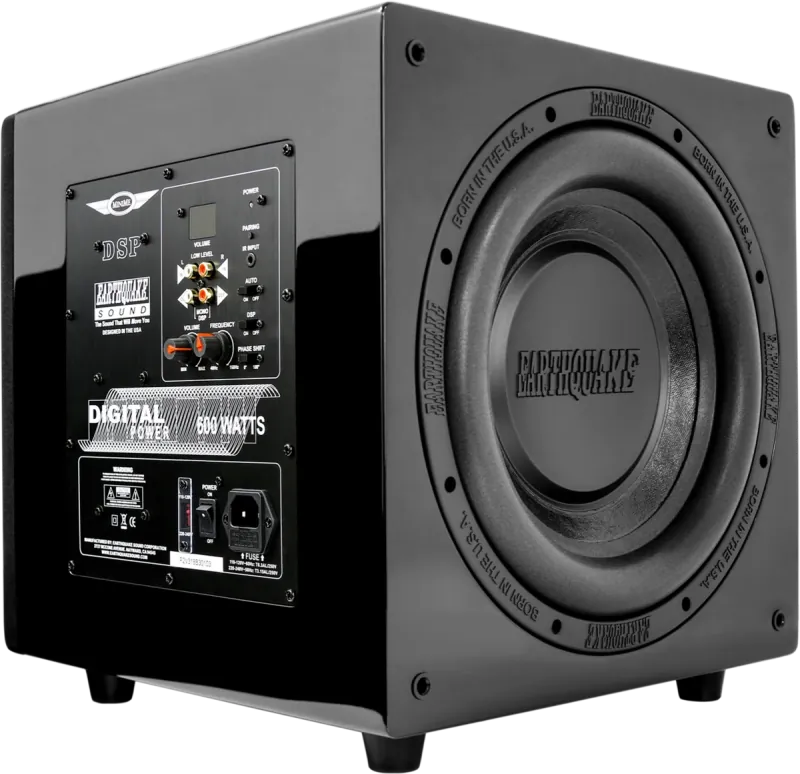

10-inch powered subwoofer

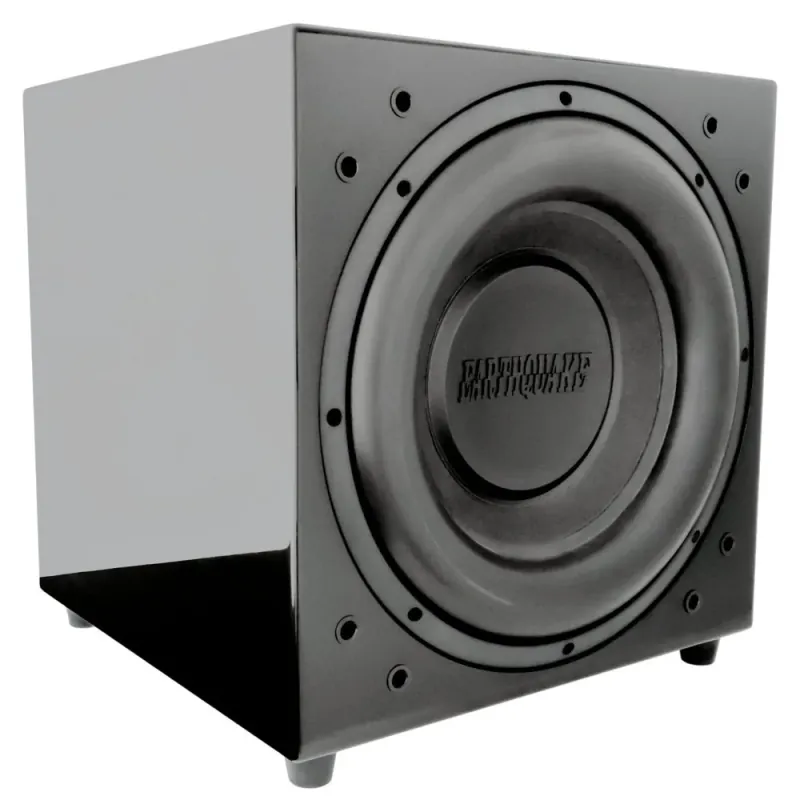

15-inch front-firing subwoofer

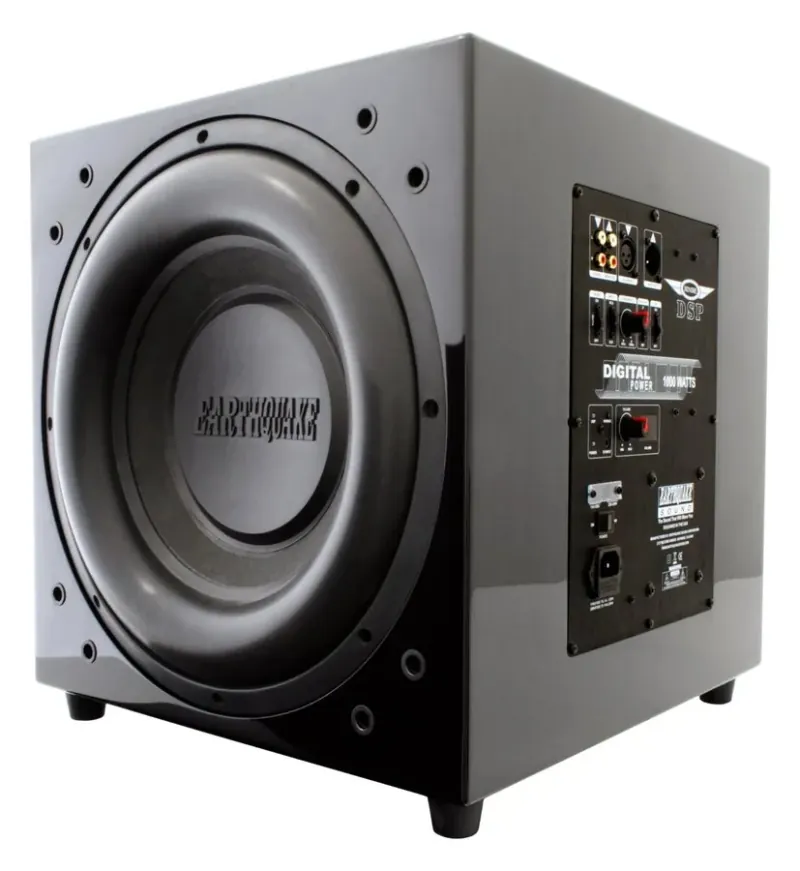

15-inch powered subwoofer
Also in the series: P12 (12-inch, 18–115 Hz) and the P8W in white piano finish.
Ported
Low-profile, ported, down-firing powered subwoofers.
8-inch powered, down-firing
Low profile and ported.
Also: SUB-80X, an 8-inch ported, down-firing powered subwoofer (23–180 Hz in the manual, 20–180 Hz on the cut sheet).
In-wall subwoofers
Subwoofers that disappear into a wall or ceiling.

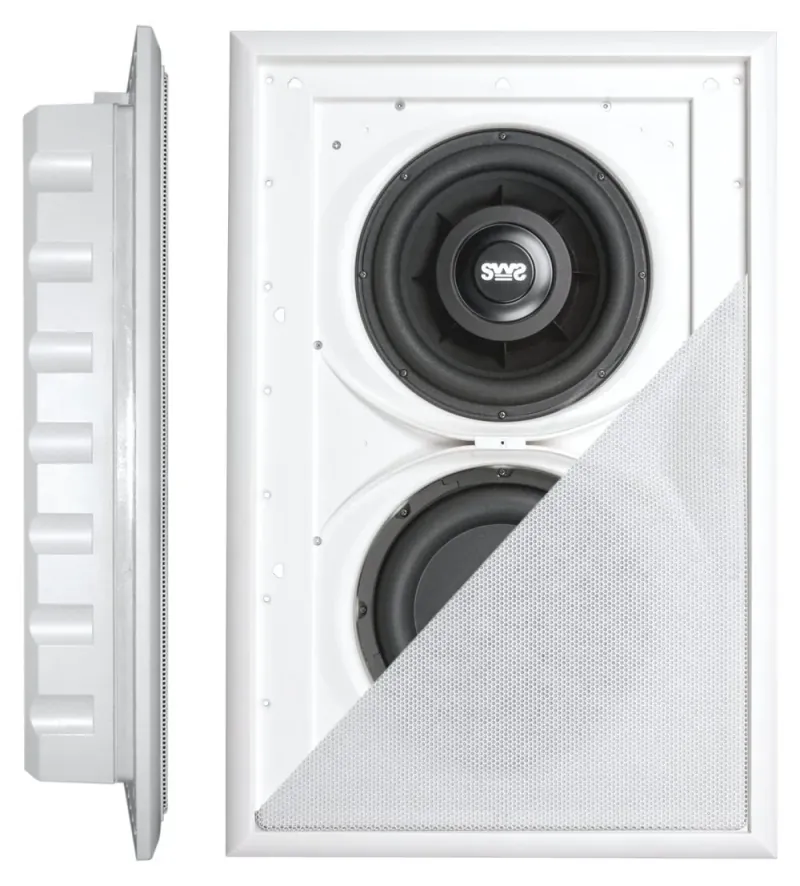

10-inch in-wall subwoofer, SLAPS passive
Earthquake's product release gives 18–160 Hz and its manual 20–160 Hz. The narrower range is shown.

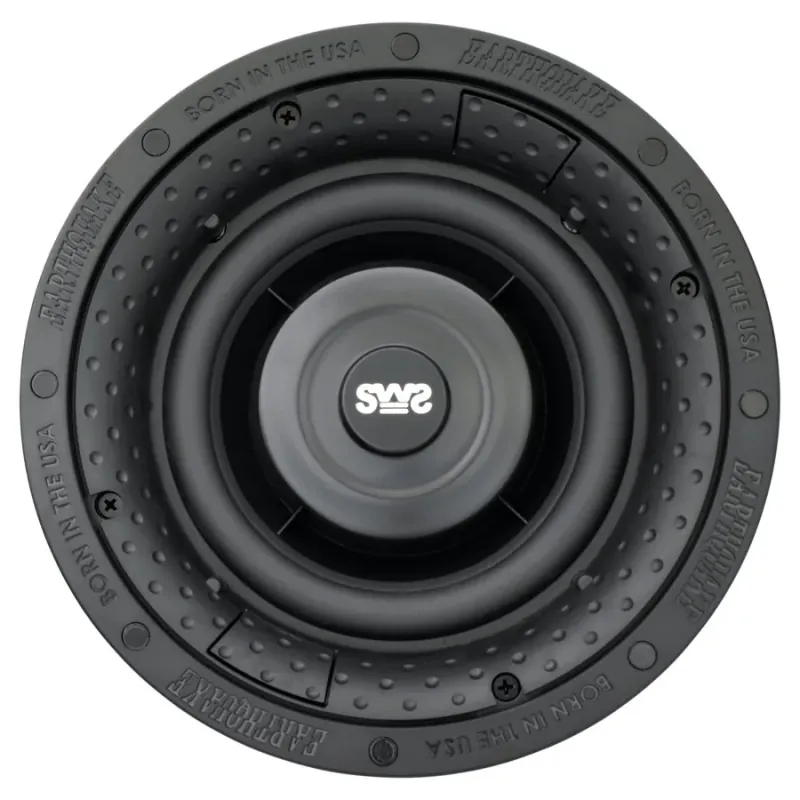

6.5-inch in-ceiling or in-wall subwoofer
Built-in crossover, round and square grilles.

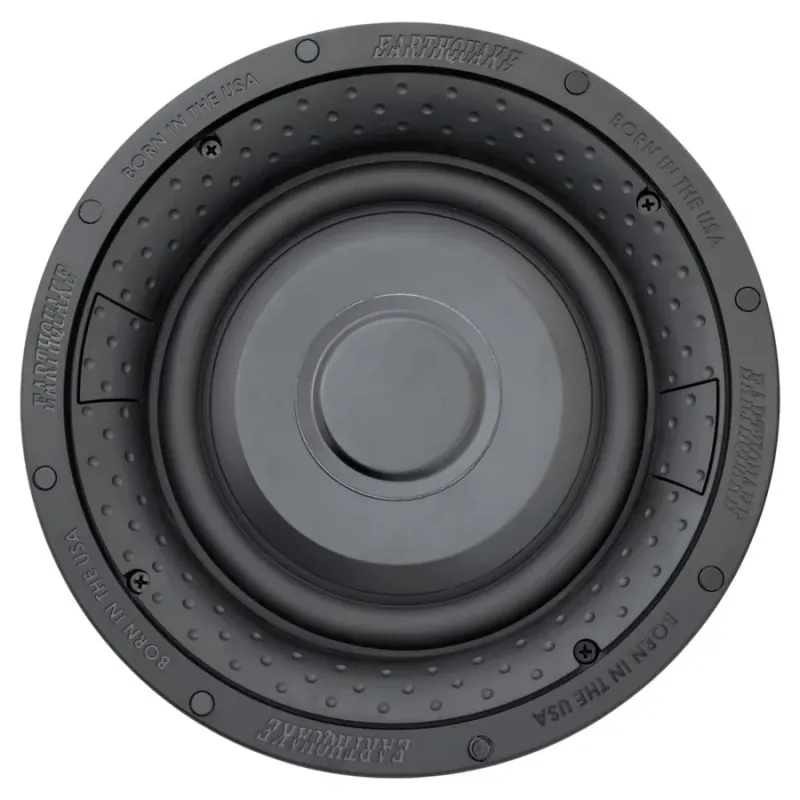

8-inch in-ceiling or in-wall subwoofer
Built-in crossover, round and square grilles.
Bass, by type
Each link jumps to the range above
Living room and cinema
Subwoofers
Powered subwoofers, from a slim 8-inch model made to sit under a sofa to the Supernova MKVII, the most powerful in Earthquake's Supernova series.
Seat and platform
Bass shakers
Tactile transducers that move a seat or platform with the low notes, so film effects are felt without turning the volume up.
Hidden and outdoors
In-wall and outdoor
A sealed in-wall subwoofer only 3.75 in deep, and rock-look subwoofers for the garden.
The bass · by type
Bass for every kind of room.
Subwoofers · Bass shakers · In-wall · Outdoor
Find your quake
A few quick questions. The answer is a real Earthquake Sound model with its published frequency range where Earthquake gives one, and a bass line whose frequencies sit inside it.
A starting point, not a sizing guide. Morion Automation specifies the system to the room.
About Earthquake Sound
Earthquake Sound Corporation is headquartered in Hayward, California. It was founded in 1984 by Joseph J. Sahyoun, an aerospace engineer, built its name in car audio, and moved into home audio in 1997. This page covers the home and commercial range.
Its patented SLAPS passive radiator, the Symmetrically Loaded Audio Passive System, uses two identical suspensions so the passive cone moves the same amount of air in either direction. Earthquake says this gives louder bass without more amplifier power.
Morion Automation is the authorised distributor in India.
Home and commercial rooms, indoors and out.
Subwoofers, bass shakers, in-wall and outdoor speakers, amplifiers, and a 70V/100V line for restaurants, retail and hospitality.
Book a consultation
Quick answers
Who makes Earthquake Sound, and where is it designed?
Earthquake Sound Corporation, headquartered in Hayward, California, and founded in 1984 by Joseph J. Sahyoun. Its product plates say designed in the USA.
Why can't I hear the deepest notes on my laptop or phone?
Small speakers cannot move enough air at very low frequencies. The page turns the bass in each clip into movement, so you can see what a small speaker cannot play. Only a subwoofer or a bass shaker reproduces the lowest notes.

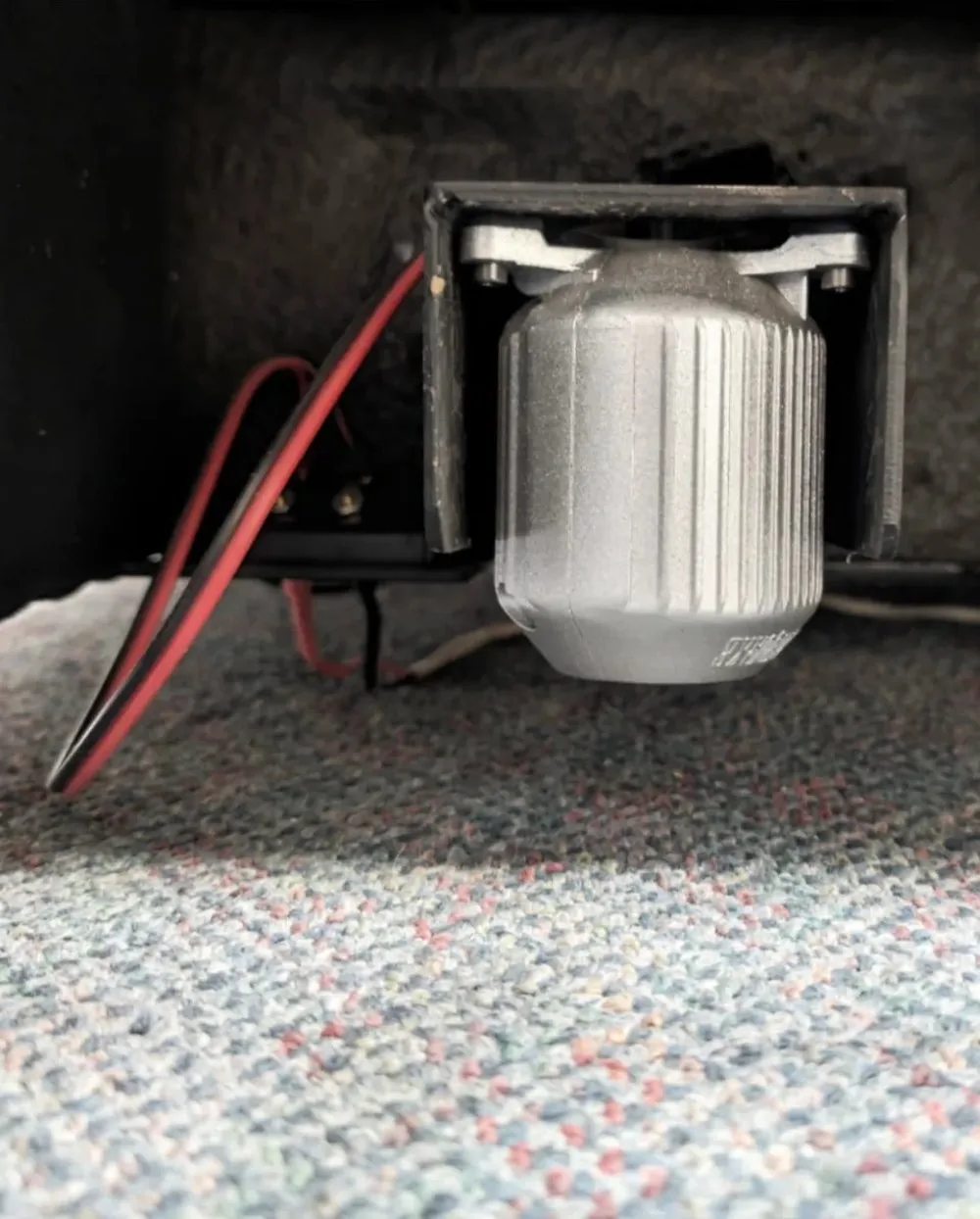

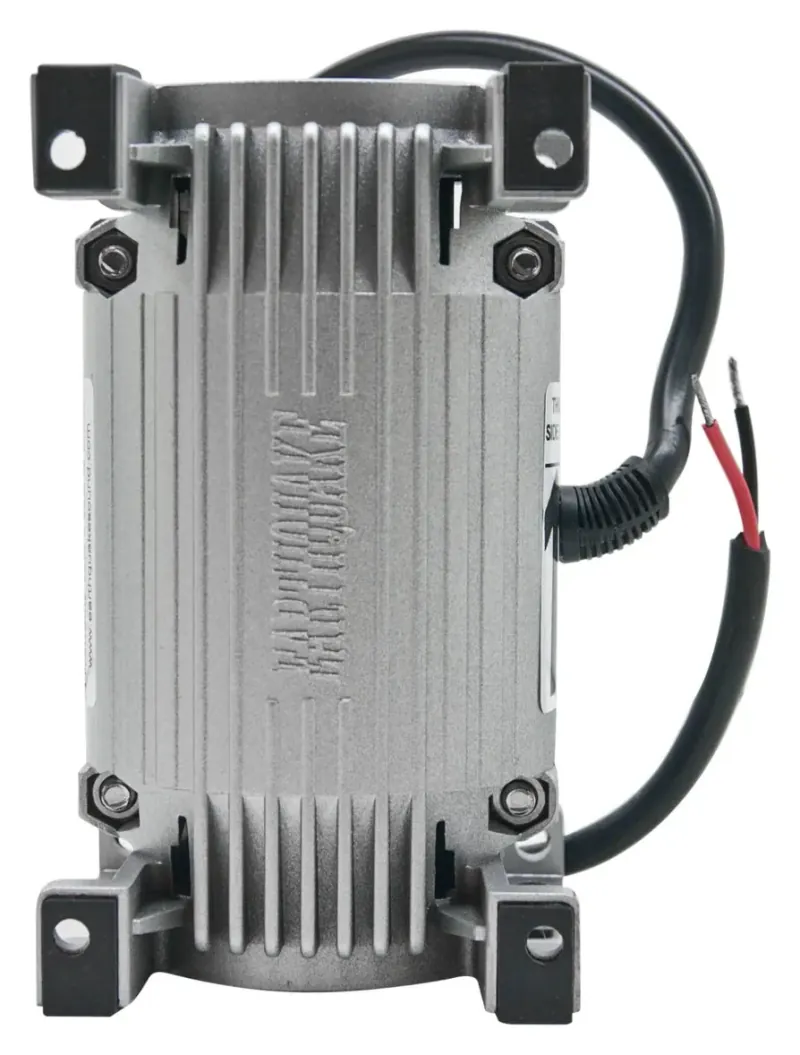

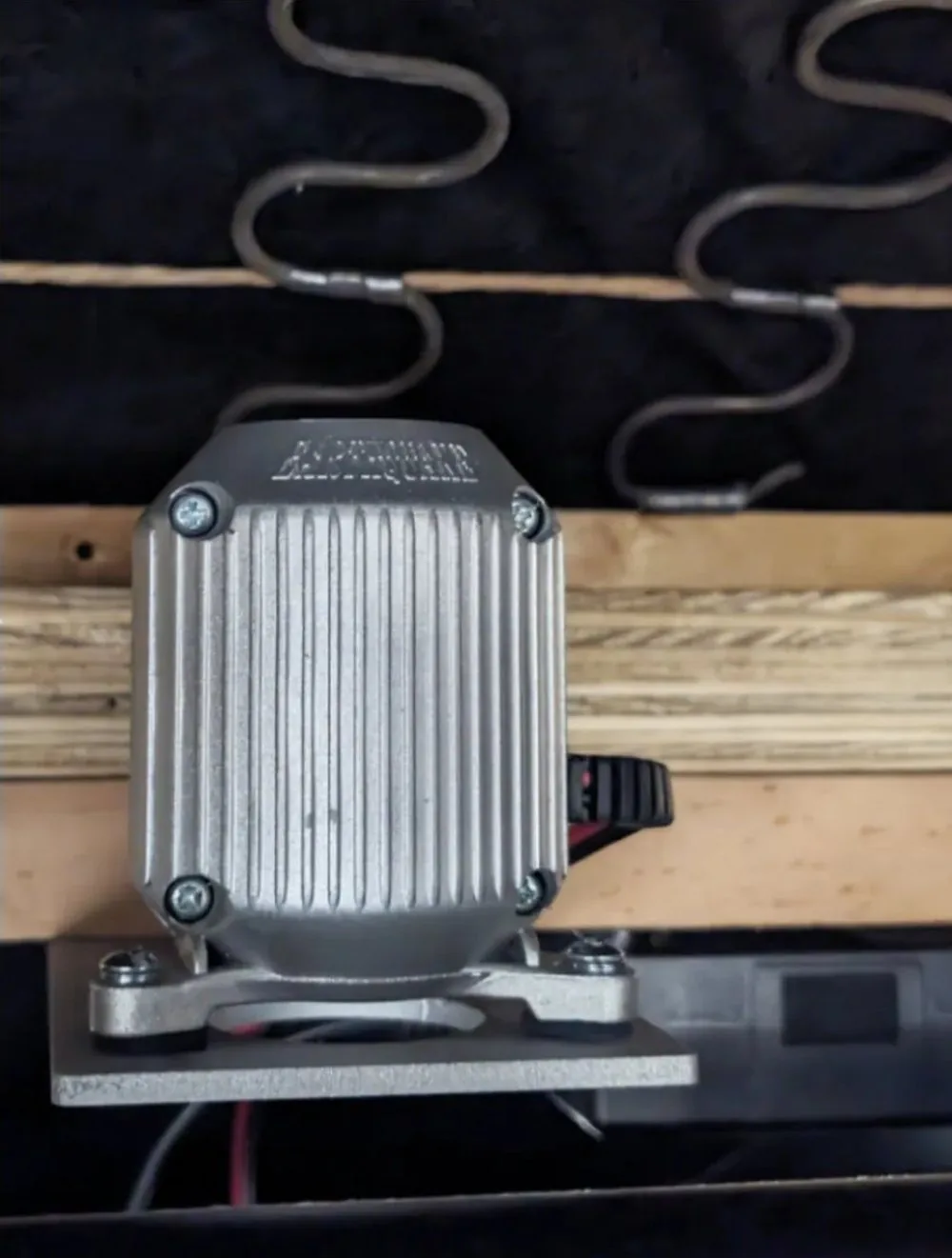

What is a bass shaker?
A tactile transducer. It is fixed to a seat or platform and moves it with the low frequencies, so you feel film effects without raising the volume. The Q10B covers 5 to 40 Hz and the MQB-1 15 to 50 Hz. Both need an amplifier.
Does this page cover car audio?
No. It covers the home and commercial range only.
What are the bass lines on this page?
Thirty-second excerpts of commercial recordings. The bass range shown for each is measured from the excerpt. They were not recorded through an Earthquake product and do not show what any product sounds like.
How do I enquire in India?
Morion Automation is the authorised distributor. Use Book a consultation below, or write to info@morion.in.

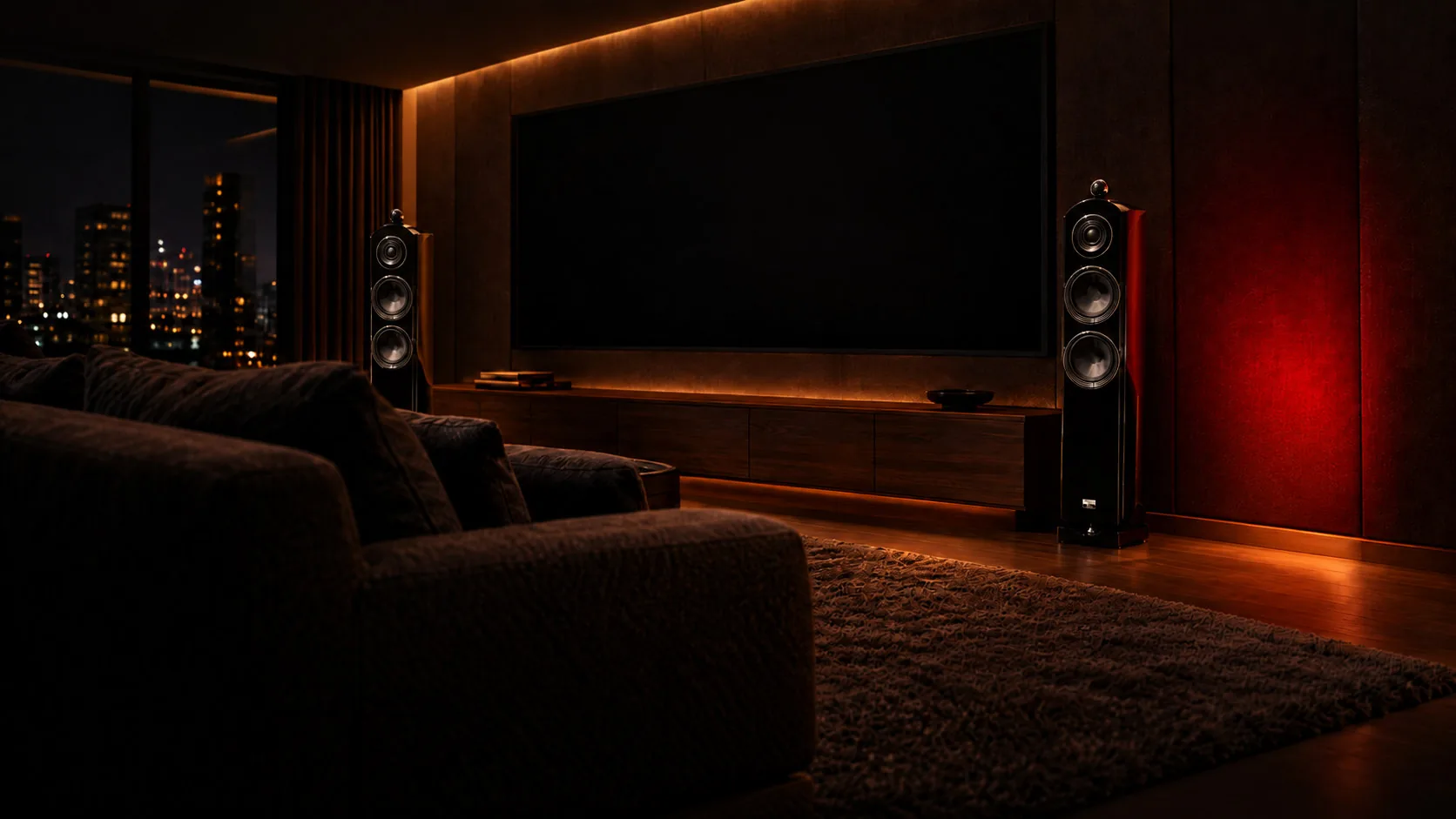

Product photography: Earthquake Sound Corporation. The cinema scenes (hero, flagship photo and panel images) are AI-generated for this prototype from an Earthquake product photo. The shaker panel and quick-answers photos are from Earthquake’s MQB-1 installation note. Audio: 30-second excerpts of commercial recordings, used in this private prototype; rights belong to their owners. Frequency ranges are as published by Earthquake Sound; where its own documents disagree, the narrower range is shown.
