London · Dubai
Cable → Switches → Power → Cabinets
One low-voltage backbone
KNX/EIB bus cable, CAT6, speaker and control cable, RS485, network switches, UPS systems and cabinets: what a smart home or building runs on behind the devices people see.
Book a consultationVoltan
Spec sheet
- KNX / EIB pairs
- 1 · 2
- KNX sheaths
- PVC · LSZH · PE
- Speaker cable
- 12 to 18 AWG
- Control cable
- 12 to 24 AWG
- RS485 cable
- 18 · 22 · 24 AWG
- LAN cable
- CAT6 · CAT6A
- Switch series
- VTA12 · 15 · 39 · 58
- UPS types
- 5
- KNX cable
- KNX certified
From Voltan's catalogue. Part numbers and sizes are Voltan's own. Ask Morion for the datasheet and availability for your project.
KNX
KNX certified.
Voltan KNX/EIB cable is KNX certified and compatible with all KNX systems. Voltan Technology Ltd is also listed in the KNX Association's manufacturer directory.
Available in 1-pair and 2-pair, in PVC, LSZH and PE sheaths. Ask Morion for the datasheet and test reports for your project.
Reference standards on the KNX/EIB datasheet
- EN 50290-2
- EN 60228
- EN 50288
- EN 60811
- IEC 60332-1-2
- IEC 60754-2
- IEC 61034-2
- RoHS
The cable
Four cables that carry the whole project.
Bus, network, control and serial. Each links to Voltan's own page for the full list of sizes and part numbers.
-
01

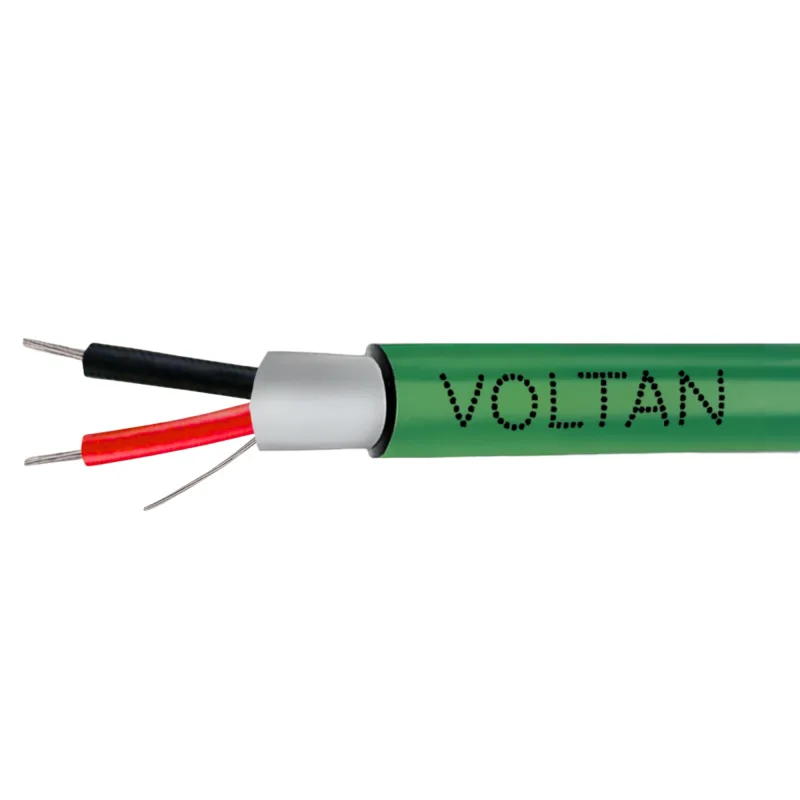

KNX / EIB bus cable
1-pair · 2-pair
Twisted-pair bus cable for KNX building automation, with solid copper conductors, in PVC, LSZH and PE sheaths.
- V1PKPV
- V1PKLZ
- V1PKPE
- V2PKPV
- V2PKLZ
- V2PKPE
-
02

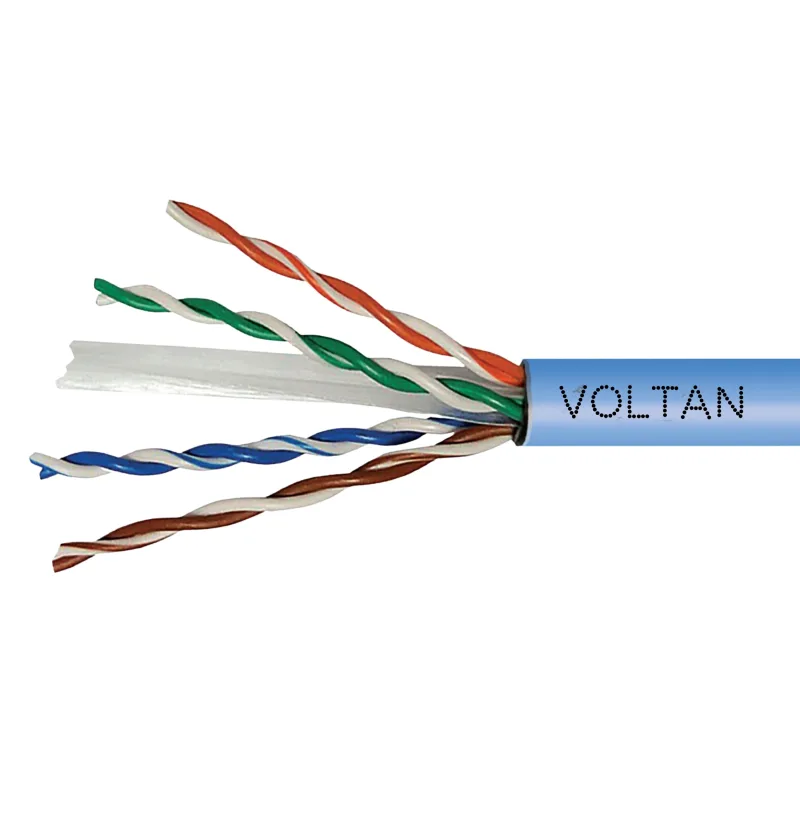

CAT6 / CAT6A cable
U/UTP · indoor · outdoor
Category 6 and 6A installation cable in indoor LSZH and outdoor PE jackets, and a CAT6 elevator cable for vertical runs.
- CAT6 · 24 AWG · LSZH
- CAT6 · 24 AWG · PE
- CAT6A · 23 AWG · PE
- NTVLC623P
-
03

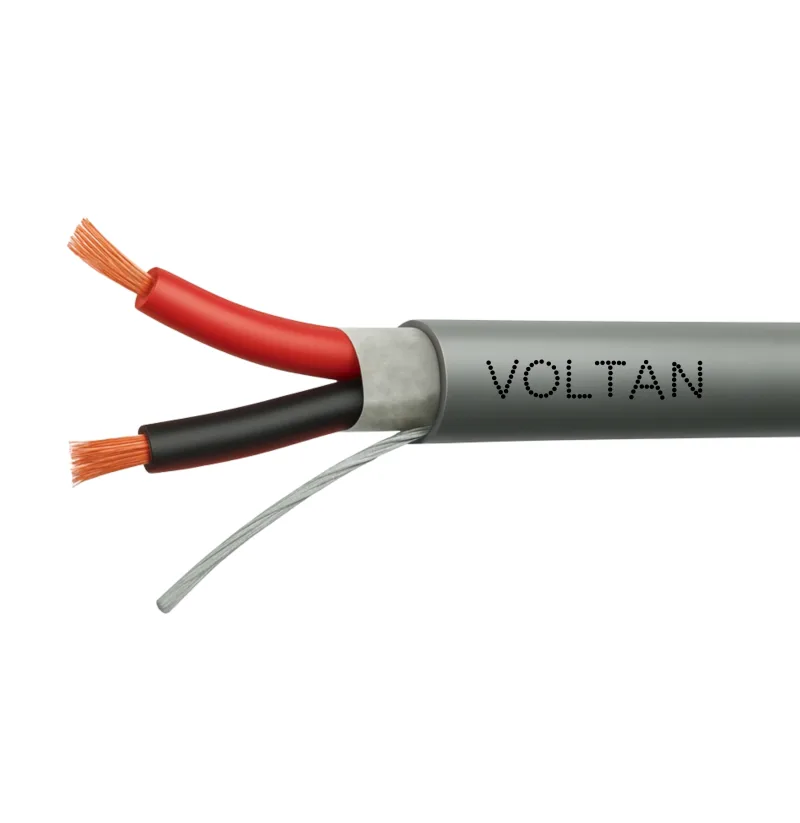

Speaker cable
12 to 18 AWG · 2-core
Two-core speaker cable, unshielded or shielded (foil or braid), with LSZH, PVC or PE insulation, on 100 m and 305 m rolls.
- HCC or OFC copper
- 300 V
- IEC · RoHS · CE
-
04

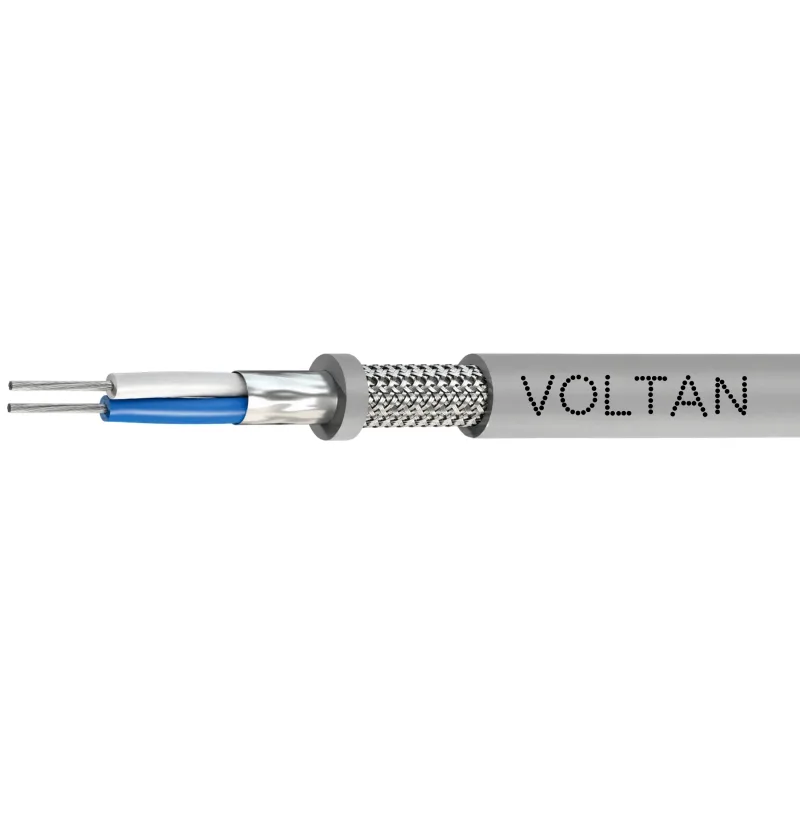

RS485 cable
18 · 22 · 24 AWG
Shielded twisted-pair cable with tinned copper conductors for RS485 serial links, in 1 to 5 pairs.
- LSZH
- PVC
- FR-PVC
Around the cable
And the hardware the cable ends up in.
Switches, power, cabinets and the rest of Voltan's low-voltage range.
Control cableShielded · unshielded
Multi-core cable for low-voltage power, control and signal, shielded (VSC series) or unshielded (VC series), in PVC, LSZH or PE sheaths.
12 to 24 AWG · 2 to 12 cores
Control cable on VoltanNetwork switchesUnmanaged · managed · industrial
Unmanaged switches (VTA12, VTA15), L3-lite and L3 managed switches (VTA39, VTA58), and industrial switches for DIN-rail, half-rack or rack mounting.
VTA series
Switches on VoltanUPSUninterruptible power
Rack-mount, tower, modular, transformer-based and line-interactive UPS systems, and batteries.
Rack · tower · modular
UPS on VoltanCabinets and enclosuresHousing
Network cabinets for racks and plant rooms, and IP enclosures where equipment sits outdoors or in harsh spaces.
Network · IP
Cabinets on VoltanCoaxial cableVideo and RF
Fire alarm cableLife safety
Where it goes
Built for the sectors that cannot afford downtime.
- Government
- Hospitality
- Education
- Healthcare
- Utilities
- Media and entertainment
